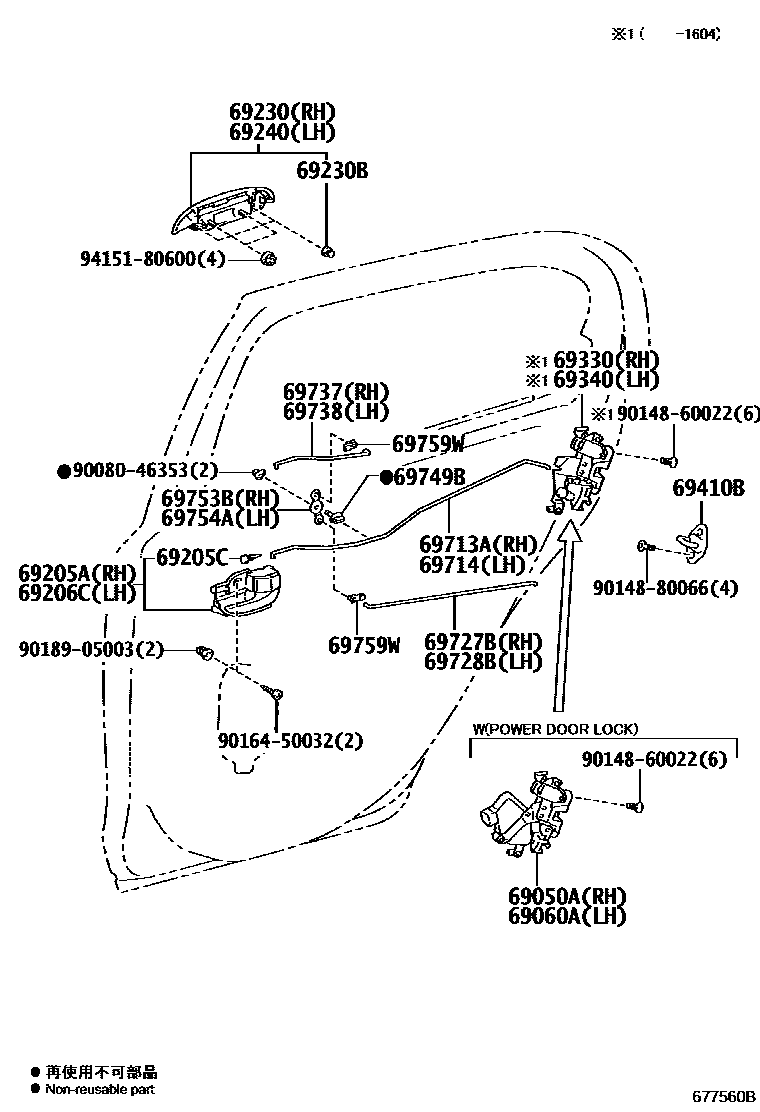

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-0D180iNGK11..4FC;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK1#..5F..(CROSS,XLS,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-0D180iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0D250-B0iNGK11,15..STD,X,XS201209-201309

GRAY,TRIM1#

main69205-0D250-C0iNGK11..STD;NGK12,15..X..AGT201309-201409

BLACK,TRIM2#

main69205-0D260-B0iNGK12,15..XLS201209-201309

SILVER,TRIM1#

main69205-0D261-C0iNGK12,15..5F..X..AGT201309-202103

BLACK,TRIM2#

main69205-0D460-C0iNGK12..(4FC,6F)..XS..BZ;NGK15..(4FC,6F)..(XLS,XS)..BZ201409-202103

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0D240-B0iNGK11,15..STD,X,XS201209-201309

GRAY,TRIM1#

main69206-0D240-C0iNGK11..STD;NGK12,15..X..AGT201309-201409

BLACK,TRIM2#

main69206-0D250-B0iNGK12,15..XLS201209-201309

SILVER,TRIM1#

main69206-0D251-C0iNGK15..5F..X..BZ;NGK11..(4FC,5F)..X;NGK12,15..6F..X..AGT201309-202103

BLACK,TRIM2#

main69206-0D460-C0iNGK12..6F..XS..AGT;NGK1#..5F..(CROSS,XLS,XS);NGK12..(4FC,6F)..(CROSS,XLS);NGK15..(4FC,6F)..(XLS,XS)..AGT201409-202103

BLACK,TRIM2#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-0D070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

NO PAINT REQ.

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04028iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-0D070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

NO PAINT REQ.

69330LOCK ASSY, REAR DOOR, RH

main69330-0D110iNGK1#..STD,X201209-201604

69340LOCK ASSY, REAR DOOR, LH

main69340-0D110iNGK1#..STD,X201209-201604

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH

main69727-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH

main69727-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-0D030iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69738-0D030iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69749BCLAMP, REAR DOOR LOCK LINK

main69749-0D010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69753BBELLCRANK, REAR DOOR LOCK CONTROL, RH

main69753-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69754ABELLCRANK, REAR DOOR LOCK CONTROL, LH

main69753-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-12070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

CREAM

main69759-20050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

BROWN

9008046353

main90080-46353

9014860022

main90148-60022

9014880066

main90148-80066

9016450032

main90164-50032

9018905003

main90189-05003

9415180600

main94151-80600

27 parts on this diagram · 1 diagram in section
