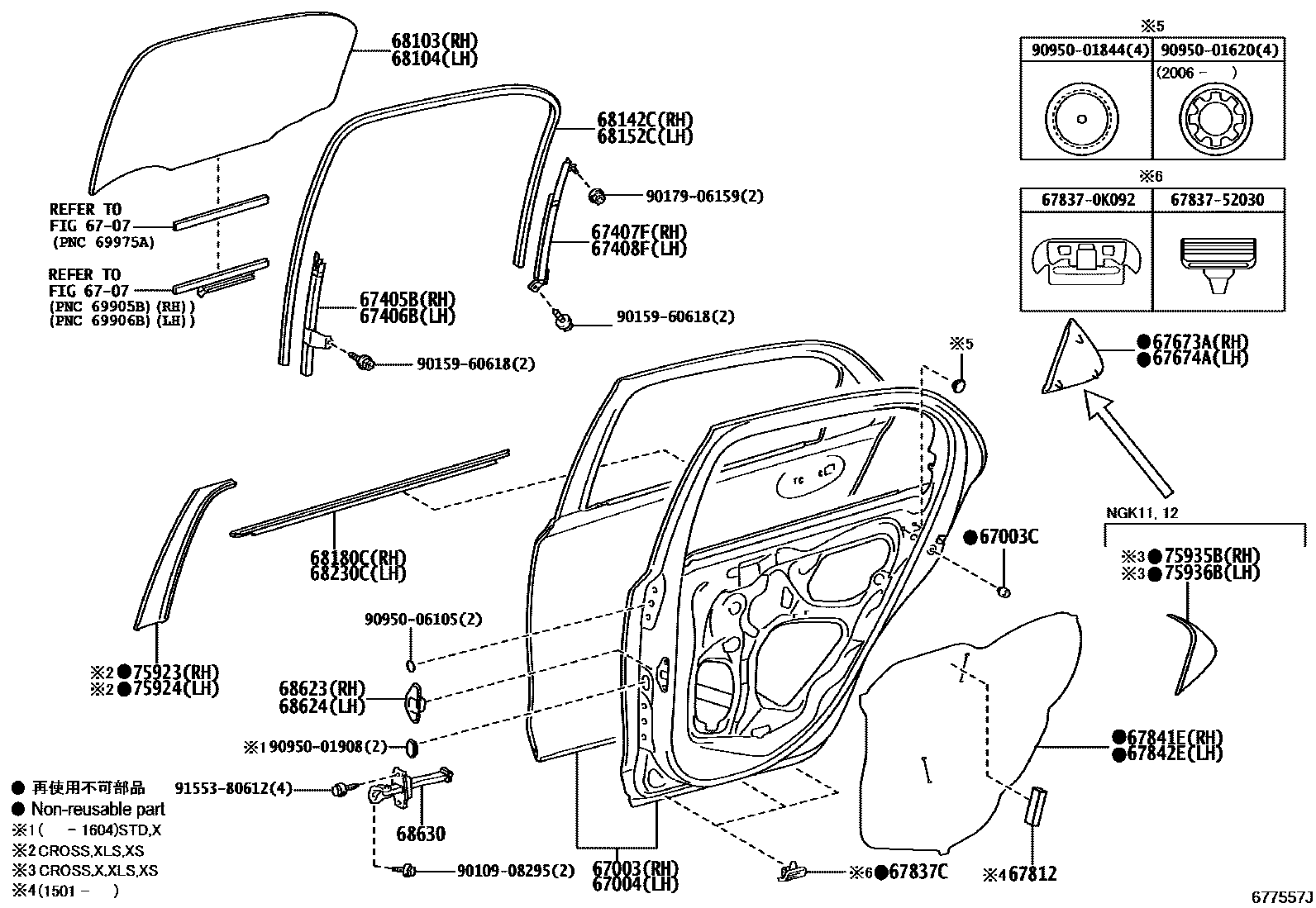

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D130iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

main67003-0D220iNGK15..5F;NGK15..(4FC,6F)..AGT201209

main67003-0D260iNGK12..CROSS201311-201802

67003CCUSHION, REAR DOOR PANEL

main90541-09124×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D130iNGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)201209

main67004-0D200iNGK15..(4FC,6F)..BZ201209-202103

main67004-0D260iNGK12..CROSS201311-201802

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-0D080iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-0D080iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0D020iNGK15..(4FC,6F)..BZ201209-202103

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0D020iNGK15..5F;NGK15..(4FC,6F)..AGT201209

67812PAD, REAR DOOR SILENCER

main67812-0D010×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201501-202103

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K092×6iNGK12,15..AGT201807-202102

main67837-52030×6iNGK1#..5F;NGK12..(4FC,6F)..CROSS201209

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0D110iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-0D110iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0D160iNGK15201209-201601

*TEM,T=3.1,GREEN

main68113-0D161iNGK15..5F;NGK15..(4FC,6F)..AGT201602-202212

main68113-0D162iNGK15..AGT202301

main68113-0D170iNGK11,12201209-201512

*TEM,T=3.1,GREEN

main68113-0D171iNGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201601-202212

main68113-0D172iNGK11..4FC;NGK12..X,XLS;NGK12..XS..AGT202301

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0D160iNGK15201209-201601

*TEM,T=3.1,GREEN

main68114-0D161iNGK15..5F;NGK15..(4FC,6F)..AGT201602-202212

main68114-0D162iNGK15..AGT202301

main68114-0D170iNGK11,12201209-201512

*TEM,T=3.1,GREEN

main68114-0D171iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201601-202103

main68114-0D172iNGK11..4FC;NGK12..X,XLS;NGK12..XS..AGT202301

68142CRUN, REAR DOOR GLASS, RH

main68142-0D110iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68152CRUN, REAR DOOR GLASS, LH

main68142-0D110iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D120iNGK1#201209-201305

main68180-0D121iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201306-202103

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D120iNGK1#201209-201305

main68230-0D121iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201306-202103

68623COVER, DOOR CHECK, RH

main68623-52010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68624COVER, DOOR CHECK, LH

main68624-52010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68630CHECK ASSY, REAR DOOR

main68630-0D130×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D050iNGK12..(4FC,6F)..XS..BZ;NGK15..(4FC,6F)..(XLS,XS)..BZ201209-202103

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D050iNGK12..(4FC,6F)..XS..BZ;NGK15..(4FC,6F)..(XLS,XS)..BZ201209-202103

75935BTAPE, BLACK OUT, OUTER REAR RH

main75935-0D020iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

75936BTAPE, BLACK OUT, OUTER REAR LH

main75936-0D020iNGK12..5F;NGK12..6F..XS..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)201209

9010908295

main90109-08295

9015960618

main90159-60618

9017906159

main90179-06159

9095001620

main90950-01620

9095001844

main90950-01844

9095001908

main90950-01908

9095006105

main90950-06105

9155380612

main91553-80612

35 parts on this diagram · 2 diagrams in section
