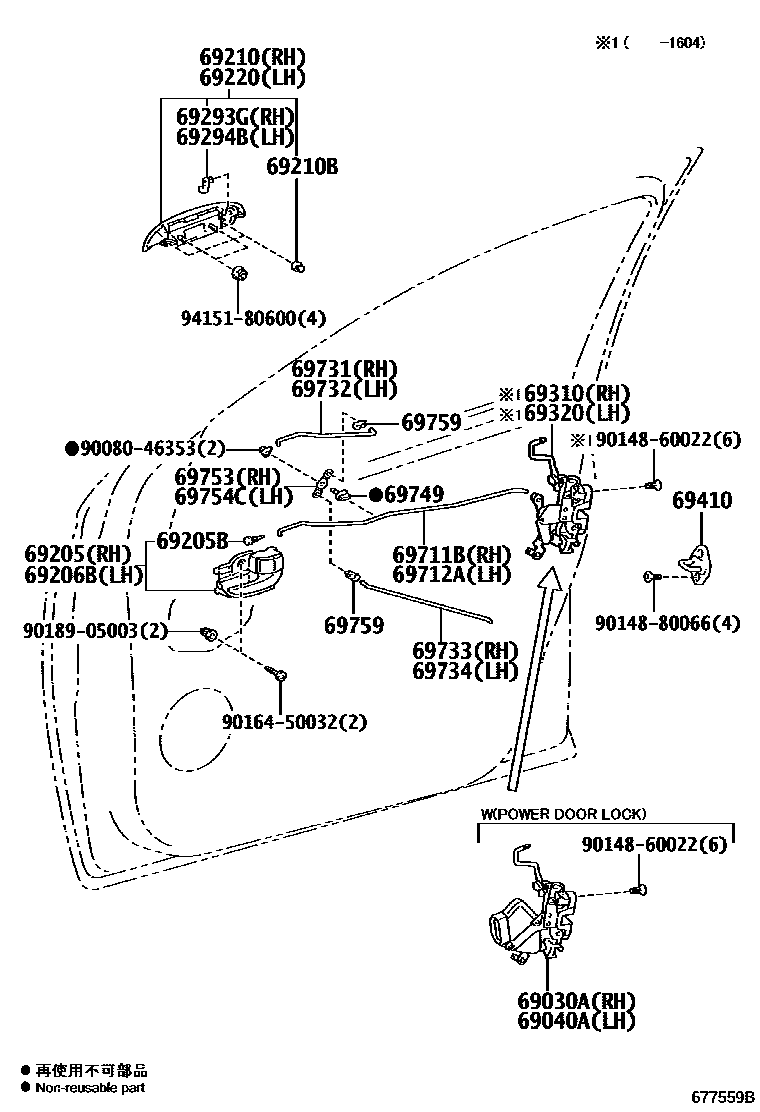

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-0D350iNGK1#..CROSS,XLS,XS201209-201604

main69030-0D510iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201701-202103

main69030-0D630iNGK1#201604-201701

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-0D370iNGK1#..XS201209-201604

main69040-0D380iNGK1#..XS201209-201409

main69040-0D610iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0D250-B0iNGK11,15..STD,X,XS201209-201309

GRAY,TRIM1#

main69205-0D250-C0iNGK11..STD;NGK12,15..X..AGT201309-201409

BLACK,TRIM2#

main69205-0D260-B0iNGK12,15..XLS201209-201309

SILVER,TRIM1#

main69205-0D261-C0iNGK15..5F..X..BZ;NGK11..(4FC,5F)..X;NGK12,15..6F..X..AGT201309-202103

BLACK,TRIM2#

main69205-0D460-C0iNGK12..6F..XS..AGT;NGK1#..5F..(CROSS,XLS,XS);NGK12..(4FC,6F)..(CROSS,XLS);NGK15..(4FC,6F)..(XLS,XS)..AGT201409-202103

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0D240-B0iNGK11,15..STD,X,XS201209-201309

GRAY,TRIM1#

main69206-0D240-C0iNGK11..STD;NGK12,15..X..AGT201309-201409

BLACK,TRIM2#

main69206-0D250-B0iNGK12,15..XLS201209-201309

SILVER,TRIM1#

main69206-0D251-C0iNGK1#..CROSS,XLS,XS201309-202103

BLACK,TRIM2#

main69206-0D460-C0iNGK12..6F..XS..AGT;NGK1#..5F..(CROSS,XLS,XS);NGK12..(4FC,6F)..(CROSS,XLS);NGK15..(4FC,6F)..(XLS,XS)..AGT201409-202103

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0D110iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

NO PAINT REQ.

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04028iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-0D070iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

NO PAINT REQ.

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-10010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-10020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69310LOCK ASSY, FRONT DOOR, RH

main69310-0D130iNGK1#..STD,X201209-201604

69320LOCK ASSY, FRONT DOOR, LH

main69320-0D130iNGK1#..STD,X201209-201604

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69733LINK, FRONT DOOR INSIDE LOCKING, RH

main69733-0D040iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

69734LINK, FRONT DOOR INSIDE LOCKING, LH

main69734-0D040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69749CLAMP, FRONT DOOR LOCK LINK

main69749-0D010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-0D020iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69753-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

YELLOW

main69759-20050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

BROWN

9008046353

main90080-46353

9014860022

main90148-60022

9014880066

main90148-80066

9016450032

main90164-50032

9018905003

main90189-05003

9415180600

main94151-80600

29 parts on this diagram · 1 diagram in section
