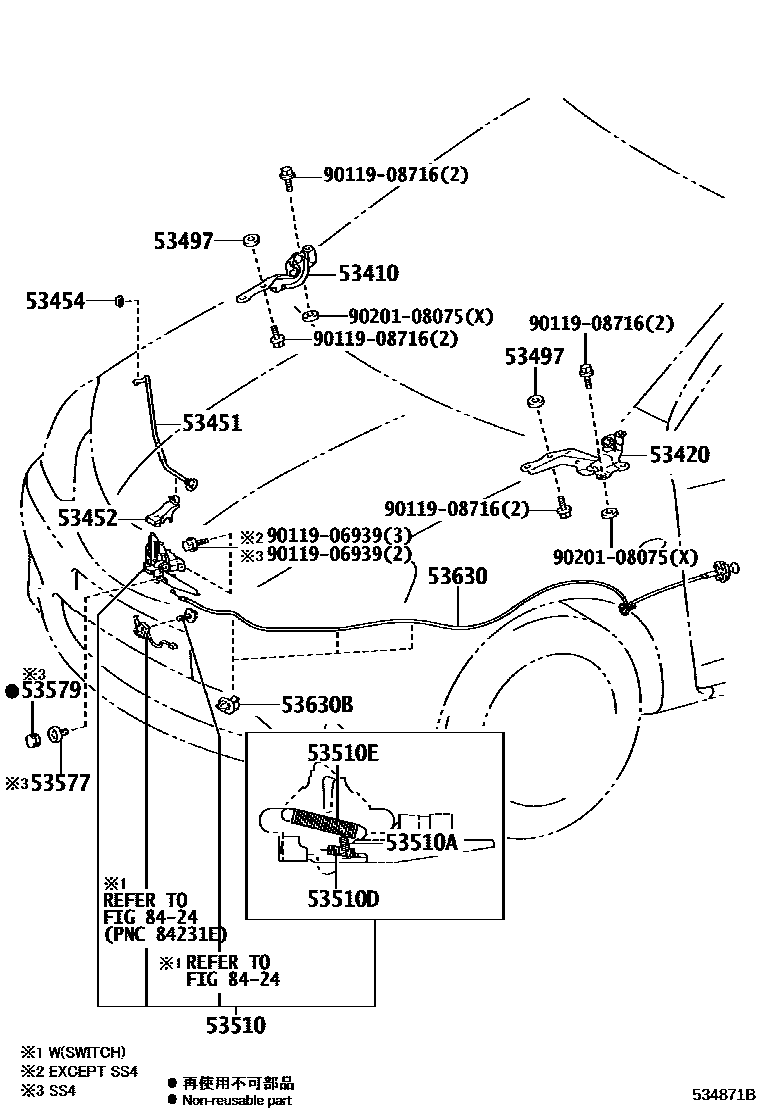

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0D290iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

53420HINGE ASSY, HOOD, LH

main53420-0D290iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

53451ROD, HOOD SUPPORT

main53440-0D090iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

53452HOLDER, HOOD STAY

main53452-0D040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

53454CLIP, HOOD SUPPORT ROD

main53454-0D030iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

53497PAD, HOOD HINGE, NO.1

main53497-70010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

T=1.0

53510LOCK ASSY, HOOD

main53510-0D280iNGK1#201209-201309

main53510-0D281iNGK1#..STD,X201309-201502

main53510-0D282iNGK1#..X201503

main53510-0D571iNGK12,15..XLS201309-201502

main53510-0D572iNGK1#..XLS,XS201503

main53510-52720iNGK12..CROSS201311-201802

53510ASPRING, TENSION(FOR HOOD LOCK)

main90080-50414iNGK1#..STD,X,XLS,XS201209

WD=1.2,CW=8.5

53510DSPRING, TENSION(FOR HOOD LOCK)

main90080-50416iNGK1#..STD,X,XLS,XS201209

WD=0.9,CW=21

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNGK12..CROSS201311-201802

WD=0.9,CW=21

main90506-12063iNGK12..CROSS201311-201802

WD=1.2,CW=8.5

main90506-16077iNGK1#..STD,X,XLS,XS201209

WD=1.6,CW=12

main90506-23054iNGK12..CROSS201311-201802

WD=0.55,CW=17.5

53577BOLT, HOOD LOCK

main53577-33010iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT; NGK12..XLS;NGK15..XLS..AGT201608

W(PACKAGE OPTION : SS4 COLORED); W(PACKAGE OPTION : SS4 PLATING)

53579CAP, HOOD LOCK NUT

main53579-50010iNGK11..6F;NGK15..BZ;NGK12..XS..BZ; NGK15..XLS..BZ201608-202103

W(PACKAGE OPTION : SS4 COLORED); W(PACKAGE OPTION : SS4 PLATING)

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D240-C0iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

BLACK,TRIM2#

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNGK1#201209-201309

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

9011906939

main90119-06939

9011908716

main90119-08716

9020108075

main90201-08075

18 parts on this diagram · 2 diagrams in section
