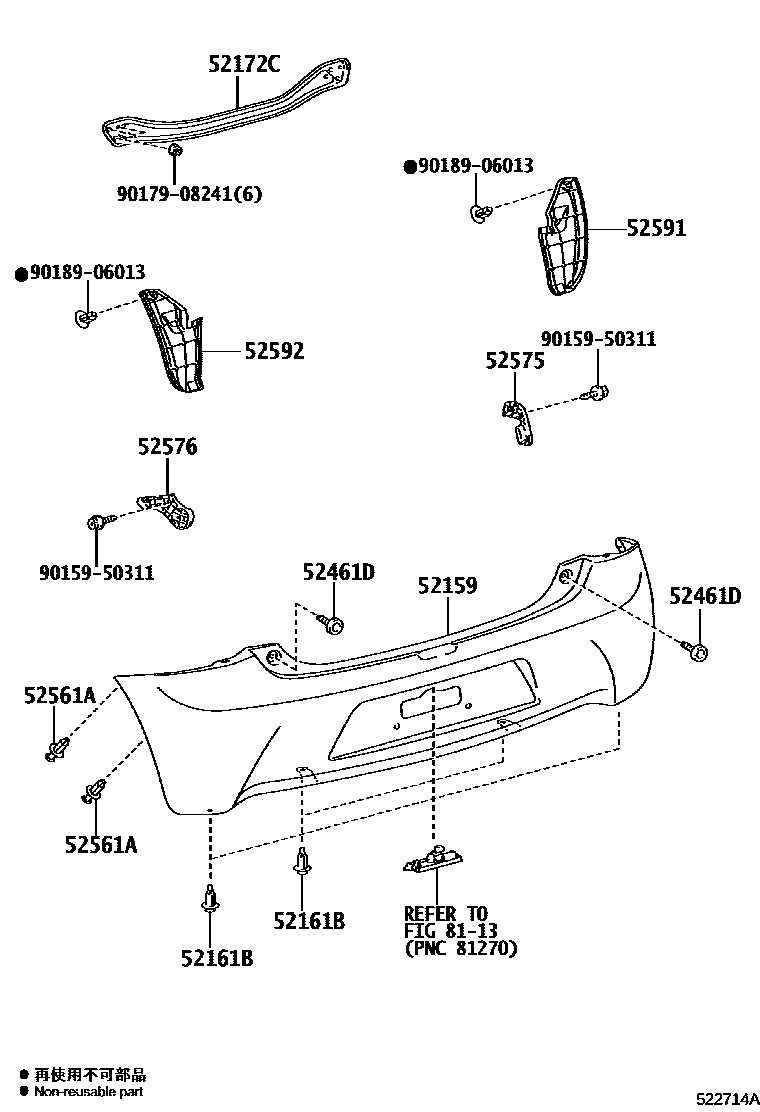

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1

52159COVER, REAR BUMPER

main52159-0D450iNGK12..CROSS201311-201802

NO PAINT REQ.

main52159-0D994iNGK15201209

main52159-0D995iNGK11,12..STD,X,XLS,XS201209

52161BPIECE, REAR BUMPER

main52161-16010iNGK1#201209

52172CREINFORCEMENT, REAR BUMPER BAR, CENTER

main52172-0D050iNGK15201209

main52172-0D060iNGK11,12201209

52461DCUSHION, REAR BUMPER

main52461-52020iNGK11,12201209

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1iNGK1#201209-201307

DK.GRAY

main90467-05170iNGK1#..STD,X,XLS,XS201308

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D110iNGK15201209

main52575-0D120iNGK11,12..STD,X,XLS,XS201209

main52575-0D220iNGK12..CROSS201311-201802

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D110iNGK15201209

main52576-0D120iNGK11,12..STD,X,XLS,XS201209

main52576-0D220iNGK12..CROSS201311-201802

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D120iNGK15201209-201604

main52591-0D150iNGK11,12..STD,X,XLS,XS201209-201604

main52591-0D240iNGK12..CROSS201311-201604

main52591-0D370iNGK15201604

main52591-0D380iNGK11,12..X,XLS,XS201604

main52591-0D390iNGK12..CROSS201604-201802

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D120iNGK15201209-201604

main52592-0D150iNGK11,12..STD,X,XLS,XS201209-201604

main52592-0D240iNGK12..CROSS201311-201604

main52592-0D370iNGK15201604

main52592-0D380iNGK11,12..X,XLS,XS201604

main52592-0D390iNGK12..CROSS201604-201802

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

9015950311

main90159-50311

9017908241

main90179-08241

9018906013

main90189-06013

13 parts on this diagram · 5 diagrams in section
