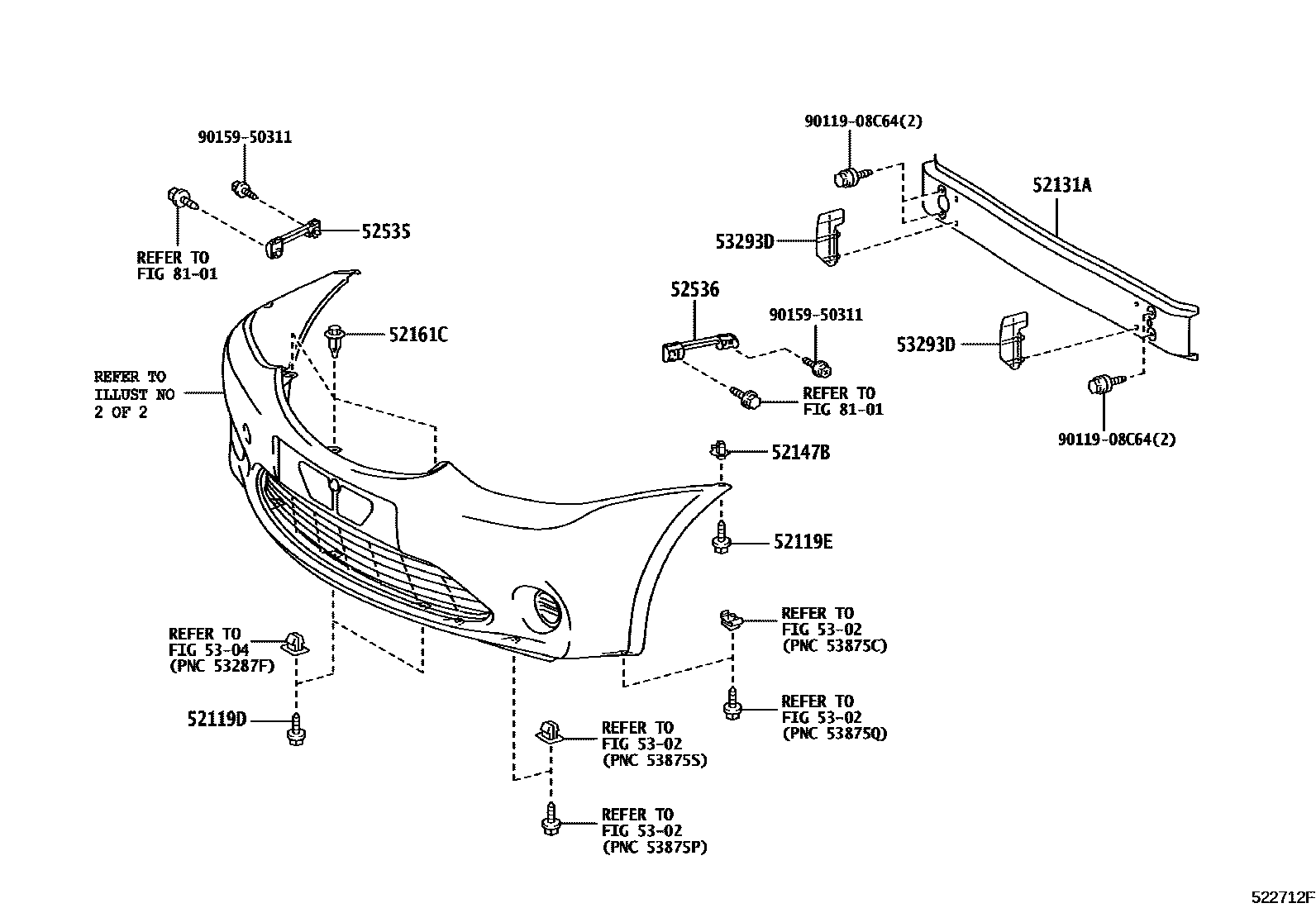

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

52119DSCREW, NO.1

main90159-60488iNGK1#201209-201304

main90159-60498iNGK1#201304

52119ESCREW, NO.2

main90159-60498iNGK1#201209

52131AREINFORCEMENT, FRONT BUMPER

main52131-0D130iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-0D090iNGK1#201209

52161CPIECE, FRONT BUMPER

main52161-16010iNGK12..CROSS201209-201802

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D080iNGK1#..STD,X,XLS,XS201209

main52535-0D170iNGK12..CROSS201311-201802

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D080iNGK1#..STD,X,XLS,XS201209

main52536-0D170iNGK12..CROSS201311-201802

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53293DDEFLECTOR, RADIATOR UPPER AIR

main53293-0D030iNGK1#..STD,X,XLS,XS201209

main53293-0D050iNGK12..CROSS201311-201802

8101HEADLAMP

→ Go to FIG 81-01

9011908C64

main90119-08C64

9015950311

main90159-50311

13 parts on this diagram · 6 diagrams in section
