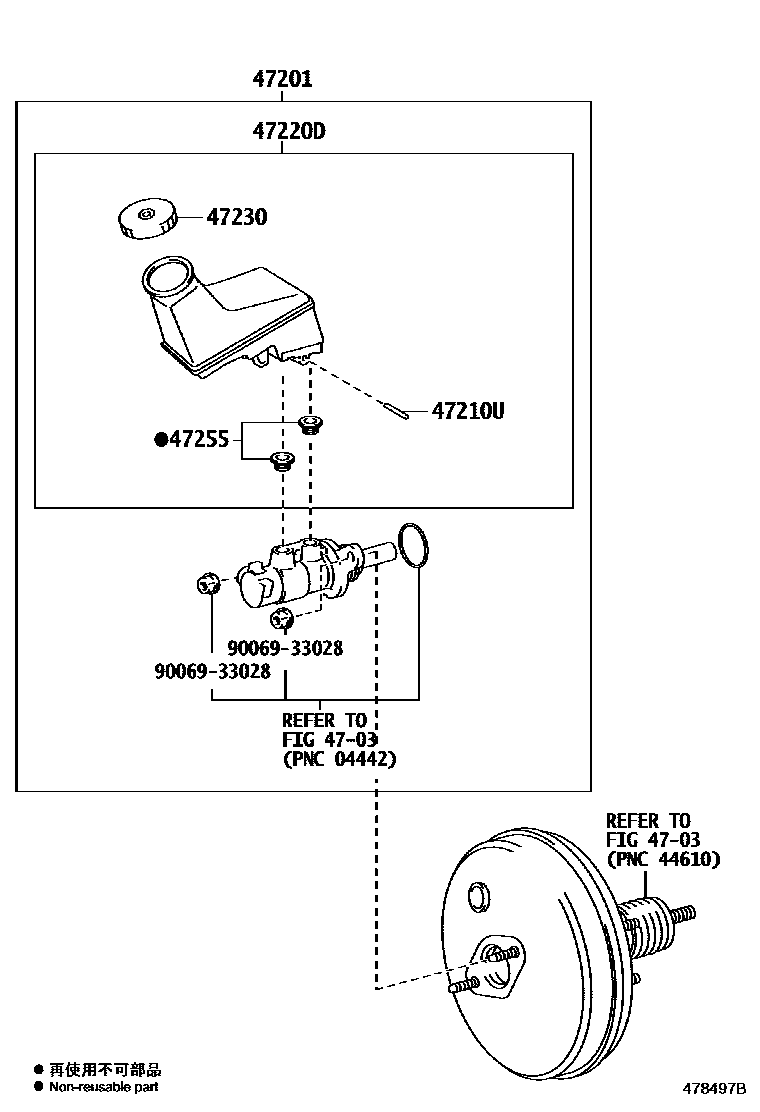

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09670iNGK1#201209-201604

main47201-09840iNGK11..6F;NGK15..X..BZ201604-202205

sub47201-09B30

main47201-09890iNGK11..4FC;NGK12,15..(X,XS)..AGT201803-202205

VEHICLE STABILITY CONT-WITH

sub47201-09B40

main47201-09B30iNGK11..4FC;NGK12,15..(X,XS)..AGT202206

main47201-09B40iNGK12..XLS;NGK15..XLS..AGT202206

VEHICLE STABILITY CONT-WITH

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iNGK12..XLS;NGK15..XLS..AGT201803-202206

VEHICLE STABILITY CONT-WITH

main90015-AE401iNGK1#..5F201209-202206

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-09160iNGK1#201209-201604

main47220-09230iNGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS201604-202205

main47220-09350iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT202206

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D160iNGK12..XLS;NGK15..XLS..AGT201209

main47230-0D160iNGK12..XS..BZ;NGK15..(XLS,XS)..BZ201803-202103

VEHICLE STABILITY CONT-WITH

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT202206

main47255-09050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202205

9006933028

main90069-33028

7 parts on this diagram · 2 diagrams in section
