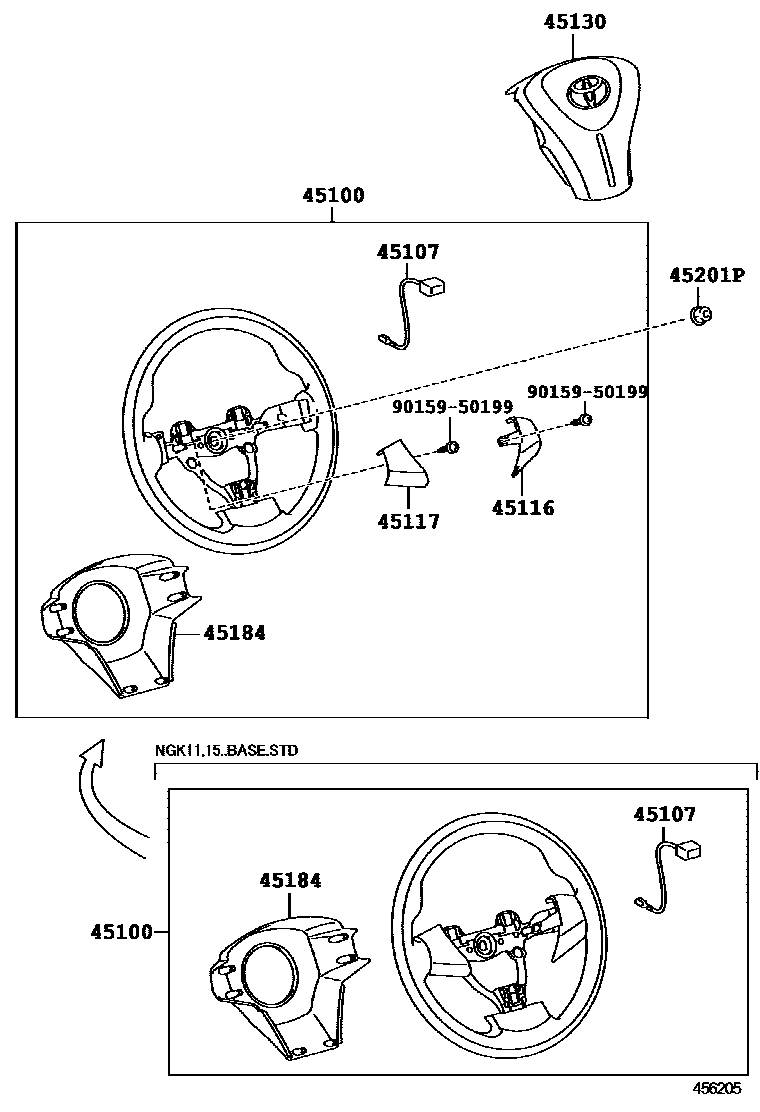

STEERING WHEEL

0001 13-SPOKE 0003 13-SPOKE 0004 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-02W80-C0iNGK11..4FC,5F;NGK12,15..5F..(X,XS);NGK12,15..6F..(X,XS)..AGT201409

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-02W90-C0iNGK12,15..CROSS,XLS201409-201610

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-02W91-C0iNGK15..XLS..AGT;NGK12..CROSS,XLS201611-202306

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-02W91-C1iNGK12..XLS;NGK15..XLS..AGT202306

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-0D410-C0iNGK1#..XLS,XS201209-201309

3-SPOKE,URETHANE,BLACK,TRIM1#,2#

main45100-0D411-C0iNGK12..XS;NGK15..XS..AGT;NGK11,15..(X,XS)..BZ201309-201409

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-0D450iNGK12,15..XLS201309-201311

3-SPOKE,LEATHER

main45100-0D450-C0iNGK12,15..CROSS,XLS201311-201409

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-0D620-C0iNGK11,15..X201209-201309

3-SPOKE,URETHANE,BLACK,TRIM1#,2#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-02070iNGK12,15..XLS201209-201309

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-02130iNGK11..6F;NGK15..(4FC,6F)..X..BZ201409-202103

main45116-0D070iNGK1#..XLS,XS201209-201309

main45116-0D071iNGK12..XS;NGK15..XS..AGT;NGK11,15..(X,XS)..BZ201309-201409

main45116-68060iNGK12,15..CROSS,XLS201309-201409

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-0D020iNGK1#..XLS,XS201209-201309

main45117-0D021iNGK12..5F..XS;NGK15..5F..XS..AGT;NGK11,15..5F..(X,XS)..BZ201309-201409

45130BUTTON ASSY, HORN

main45130-02650-C0iNGK1#201409-201703

BLACK,TRIM2#

main45130-02810-C0iNGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS201703

BLACK,TRIM2#

main45130-0D300-C0iNGK12,15..XLS201209-201309

BLACK,TRIM1#,2#

main45130-0D370iNGK12,15..XLS201309-201311

main45130-0D370-C0iNGK12,15..CROSS,XLS201311-201409

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-0D150iNGK12,15..XLS201309-201311

main45184-0D150-C0iNGK12,15..5F..(CROSS,XLS)201311-201409

BLACK,TRIM2#

main45184-0D160-C0iNGK12,15..X..AGT201209-201409

BLACK,TRIM1#,2#

45201PNUT, STEERING WHEEL SET

main90179-12071iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

9015950199

main90159-50199

8 parts on this diagram · 3 diagrams in section
