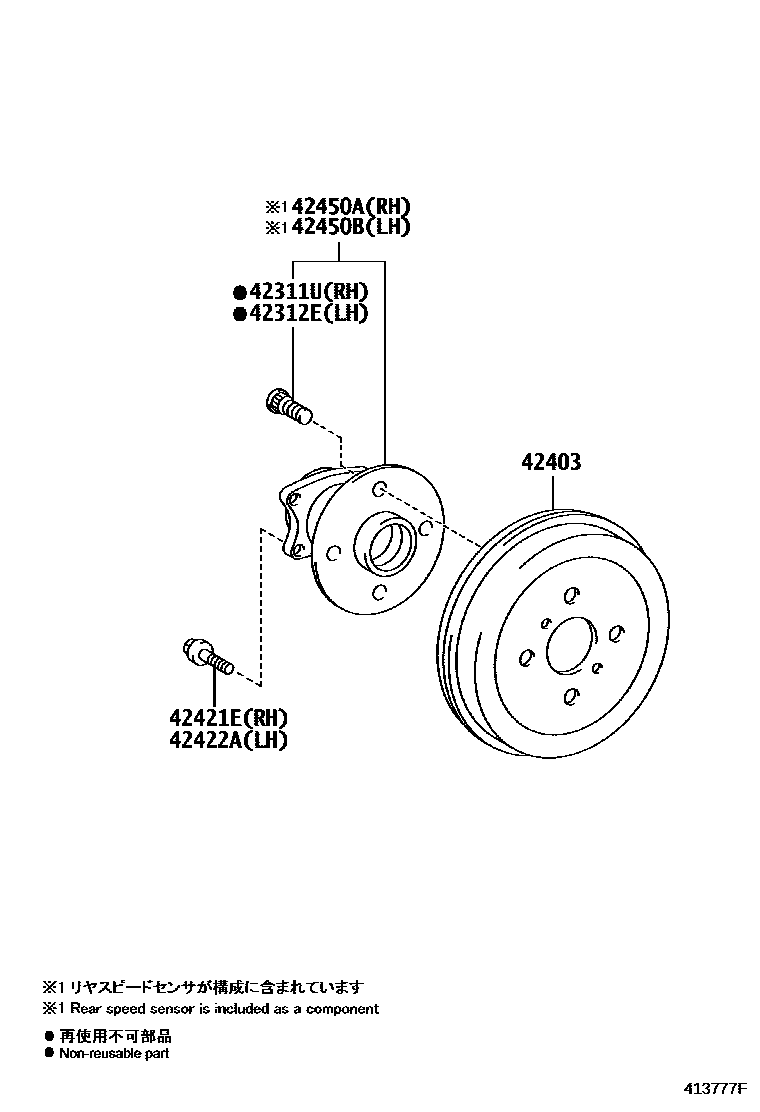

REAR AXLE SHAFT & HUB

0001 1WITH(ABS) 0002 1WITHOUT(ABS)

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0D150×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0D080iNGK11..STD201209-201310

main42450-0D100iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0D080iNGK11..STD201209-201310

main42450-0D100iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

7 parts on this diagram · 2 diagrams in section
