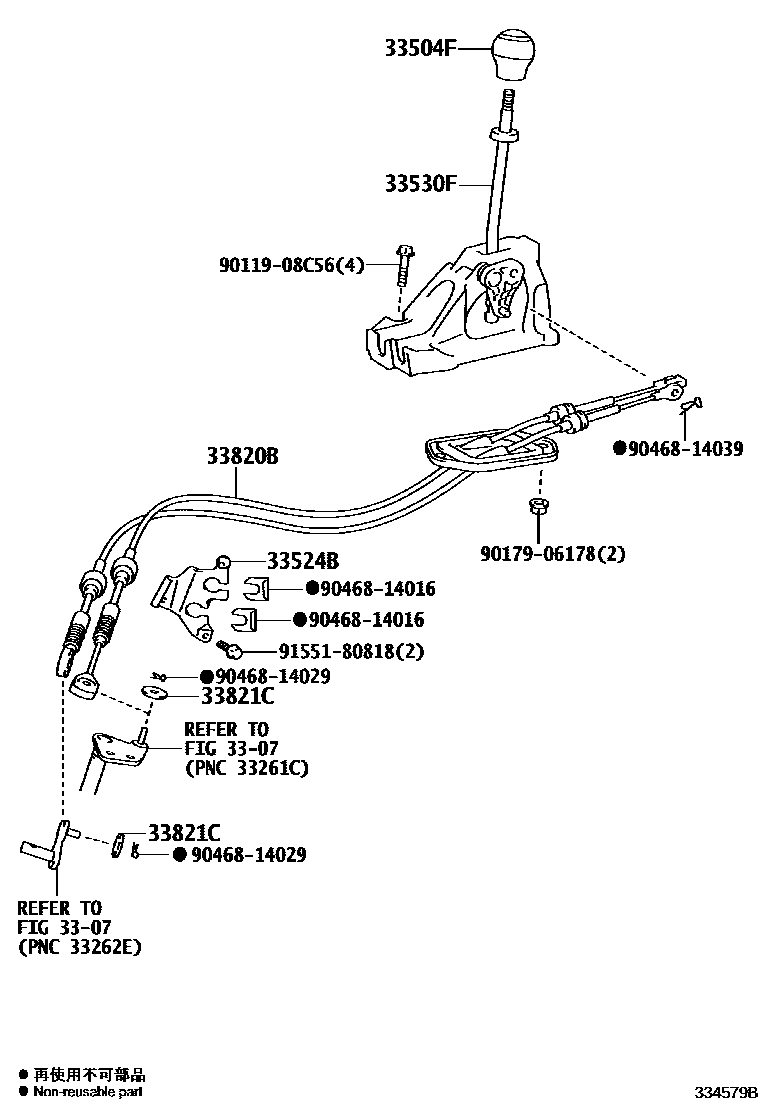

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D220-C0iNGK11,15..X,XS; NGK11..STD201209-201304

BLACK,TRIM1#; BLACK,TRIM1#,2#

main33504-12380iNGK11,15..X,XS201305-201309

main33504-12380-C0iNGK11..STD;NGK12,15..X..AGT201305-201604

BLACK,TRIM2#

main33504-13030-C1iNGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS)201604

BLACK,TRIM2#

main33504-52220-C0iNGK12..CROSS201311-201604

BLACK,TRIM2#

main33504-52370-C0iNGK12,15..XLS201209-201309

BLACK,TRIM1#

main33504-52371-C0iNGK12,15..XS..AGT;NGK11,15..(X,XS)..BZ; NGK15..XLS;NGK12..XLS..AGT;NGK12..(XLS,XS)..BZ201309-201604

BLACK,TRIM1#,2#; BLACK,TRIM2#

main33504-52460-C0iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

BLACK,TRIM2#

main33504-52470-C0iNGK12..6F..CROSS201604-201802

BLACK,TRIM2#

main33504-52480-C0iNGK12,15..4FC..(X,XS)201604-202103

BLACK,TRIM2#

33524BBRACKET, CONTROL CABLE

main33524-0D080iNGK1#201209-201604

main33524-0D180iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0D100iNGK1#201209-201604

main33530-0D210iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0D300iNGK1#201209-201604

main33820-0D600iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main33820-0D610iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267×2iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201209-202103

OD=28

9011908C56

main90119-08C56

9017906178

main90179-06178

9046814016

main90468-14016

9046814029

main90468-14029

9046814039

main90468-14039

9155180818

main91551-80818

12 parts on this diagram · 4 diagrams in section
