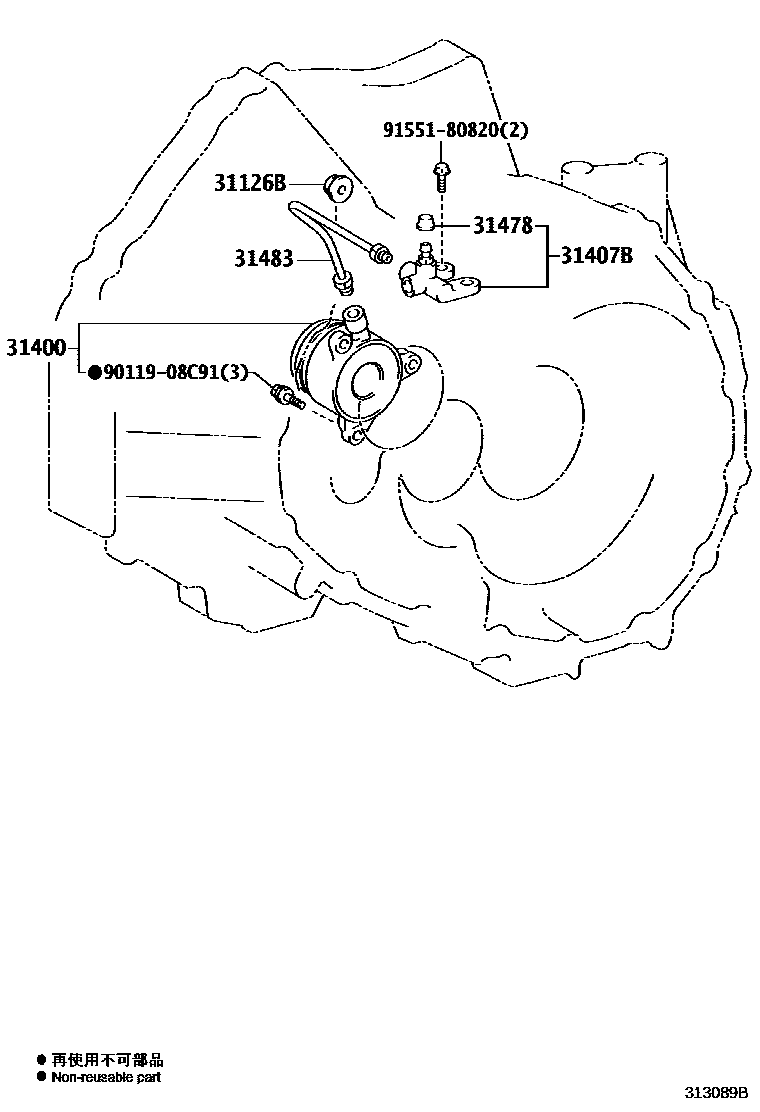

CLUTCH RELEASE CYLINDER

31126BBOOT, CLUTCH TUBE

main31126-0D070iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-09020iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main31400-09021iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(X,XLS)202211

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-52010iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-0D300iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

9011908C91

main90119-08C91

9155180820

main91551-80820

7 parts on this diagram · 1 diagram in section
