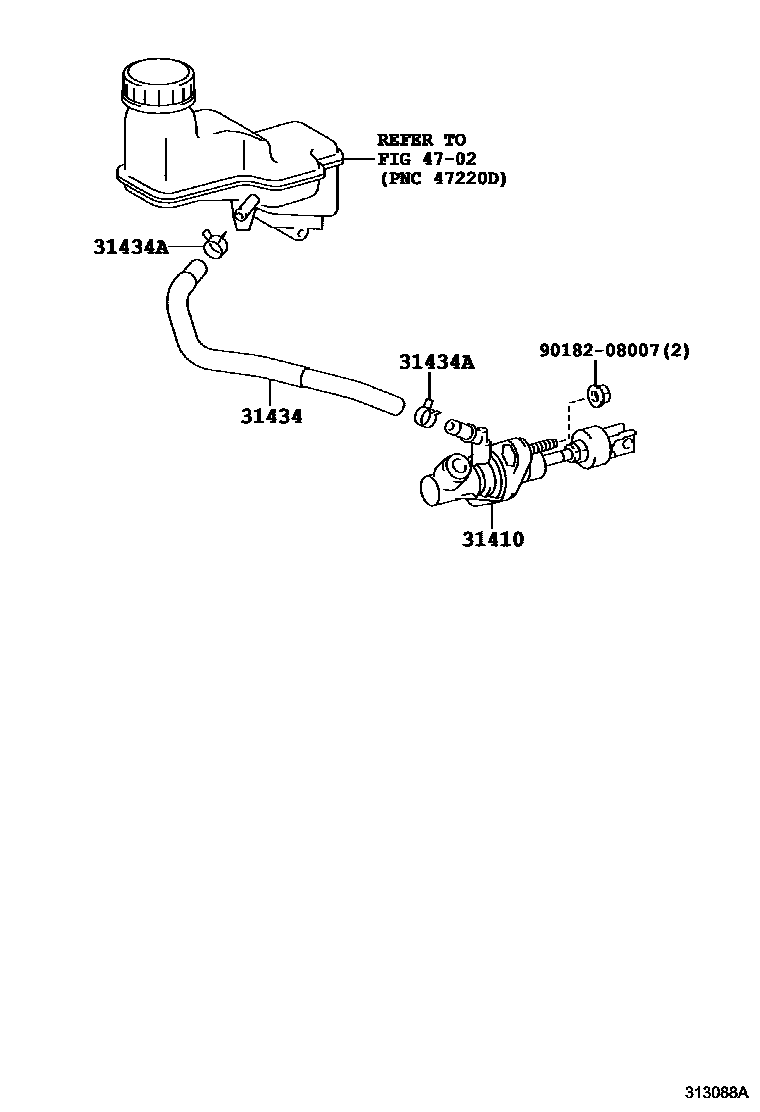

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0D230iNGK1#..6F201604-202103

main31420-0D231iNGK1#..6F201704-201901

31434TUBE, CLUTCH RESERVOIR

main31434-0D120iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9018208007

main90182-08007

5 parts on this diagram · 1 diagram in section
