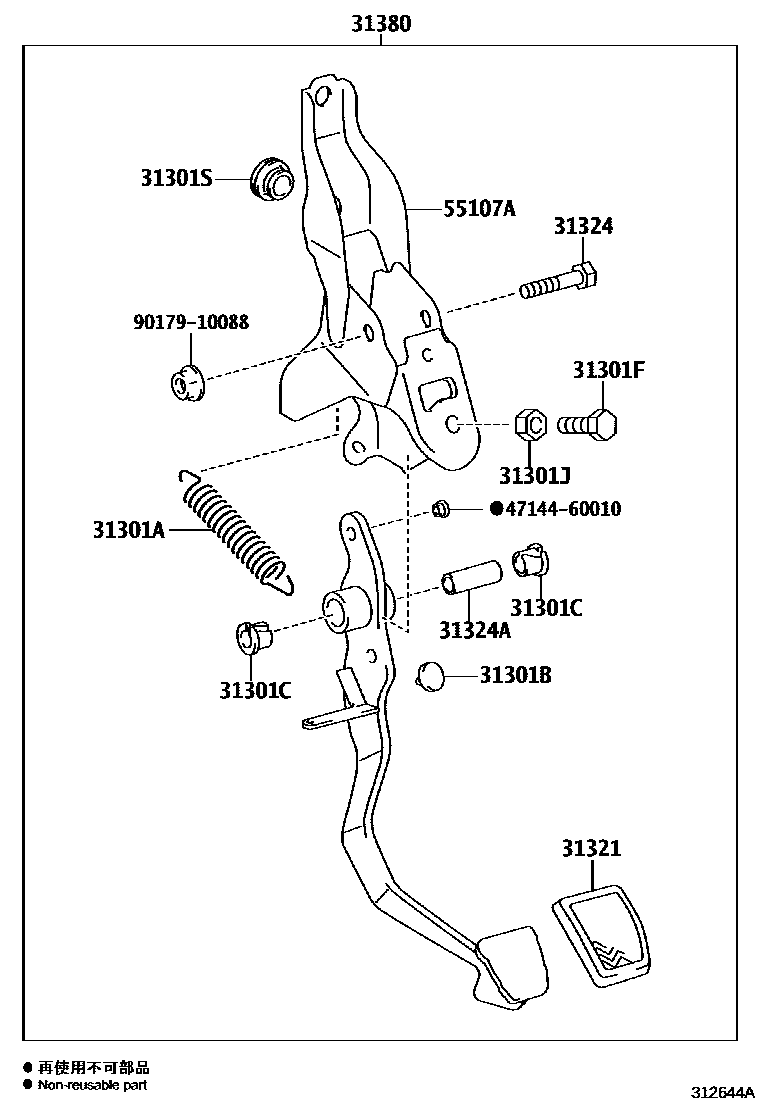

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301ASPRING(FOR CLUTCH PEDAL)

main90080-50408iNGK1#201209-201604

main90506-14082iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNGK1#201209-201604

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201209-202103

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201209-202103

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201209-202103

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90080-38154iNGK1#201209-201604

31321PAD, CLUTCH PEDAL

main31321-02010iNGK1#201209-201604

main31321-02050iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

31324SHAFT, CLUTCH PEDAL

main90101-10081iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201209-202103

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201209-202103

31380SUPPORT ASSY, PEDAL

main31380-0D200iNGK1#201209-201604

main31380-0D560iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D150iNGK1#201209-201604

main55107-0D360iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

4714460010EQUALIZER, PUSH ROD

main47144-60010

9017910088

main90179-10088

13 parts on this diagram · 4 diagrams in section
