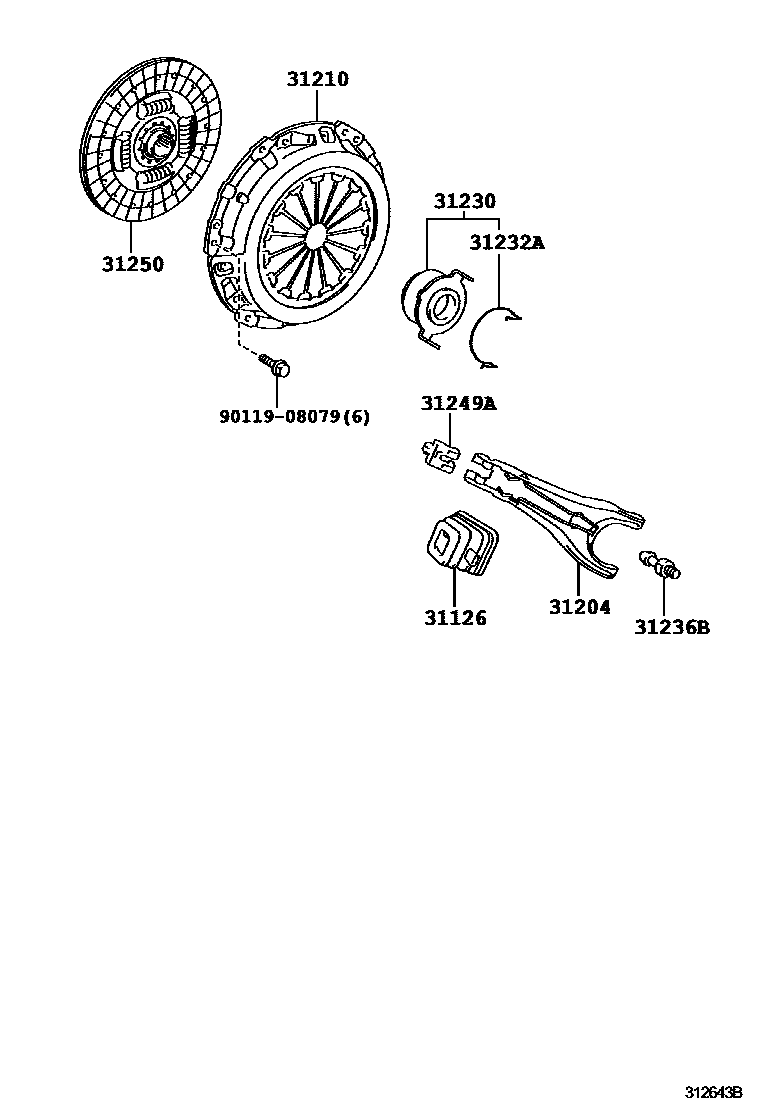

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0D020iNGK1#201301-201604

(L)

main31126-52010iNGK1#201209-201604

(J)

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0D020iNGK1#201301-201604

(L)

main31204-52050iNGK1#201209-201604

(J)

31210COVER ASSY, CLUTCH

main31210-0D110iNGK1#201209-201604

main31210-0D220iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

31230BEARING ASSY, CLUTCH RELEASE

main31230-52051iNGK1#201209-201309

main31230-52052iNGK1#201309-201604

31232ACLIP, RELEASE BEARING HUB

main31232-52010iNGK1#201209-201604

31236BSUPPORT, RELEASE FORK

main31236-52010iNGK1#201209-201604

31249AGROMMET, CLUTCH RELEASE FORK

main31249-52010iNGK1#201209-201604

31250DISC ASSY, CLUTCH

main31250-0D140iNGK1#201209-201604

main31250-0D290iNGK1#..6F201604-201809

main31250-0D291iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201810-202103

9011908079

main90119-08079

9 parts on this diagram · 2 diagrams in section
