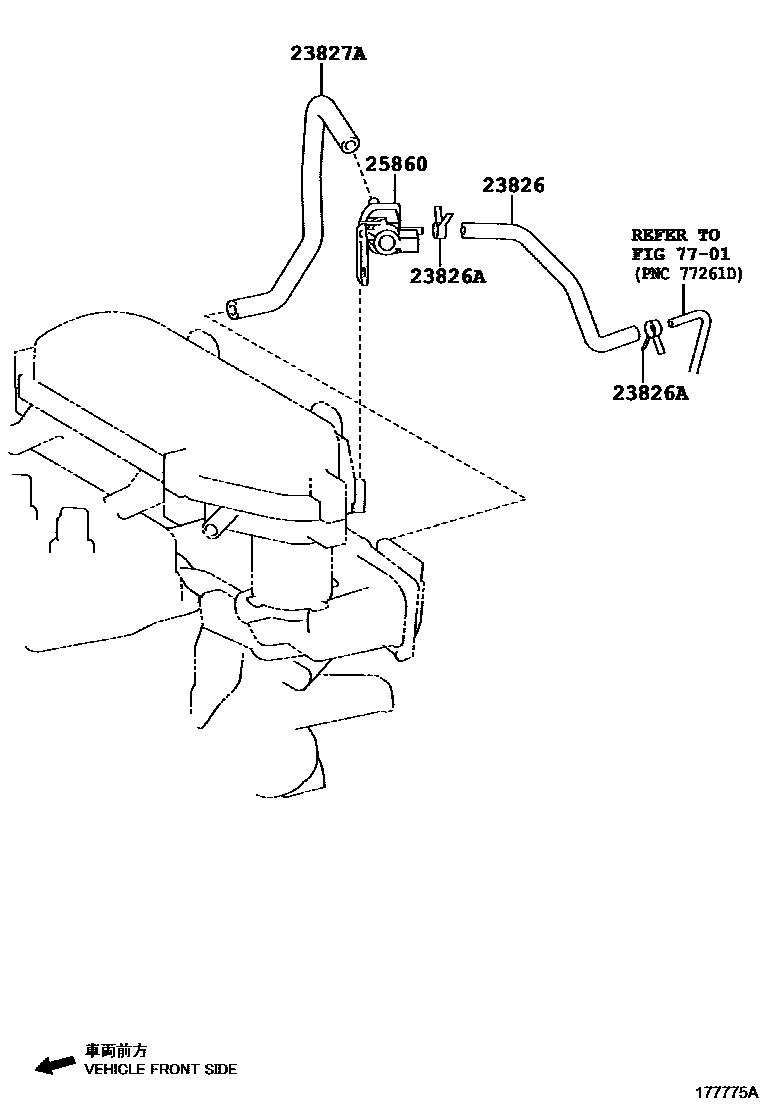

VACUUM PIPING

0001 1 0002 1 0003 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-47070i1NRFBE,2NR#..NGK1#201209-201604

main23826-47130i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201604-202103

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i1NRFBE..NGK11..6F;2NRFBE..NGK15..4FC,6F;2NRFBE..NGK12..(4FC,6F)..XS201209-202103

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-47050i1NRFBE,2NR#..NGK1#201209-201604

main23827-47140i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201604-202103

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0Y030i1NRFBE,2NR#..NGK1#201209-201604

main25860-0Y080i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201604-202103

7701FUEL TANK & TUBE

→ Go to FIG 77-01

5 parts on this diagram · 3 diagrams in section
