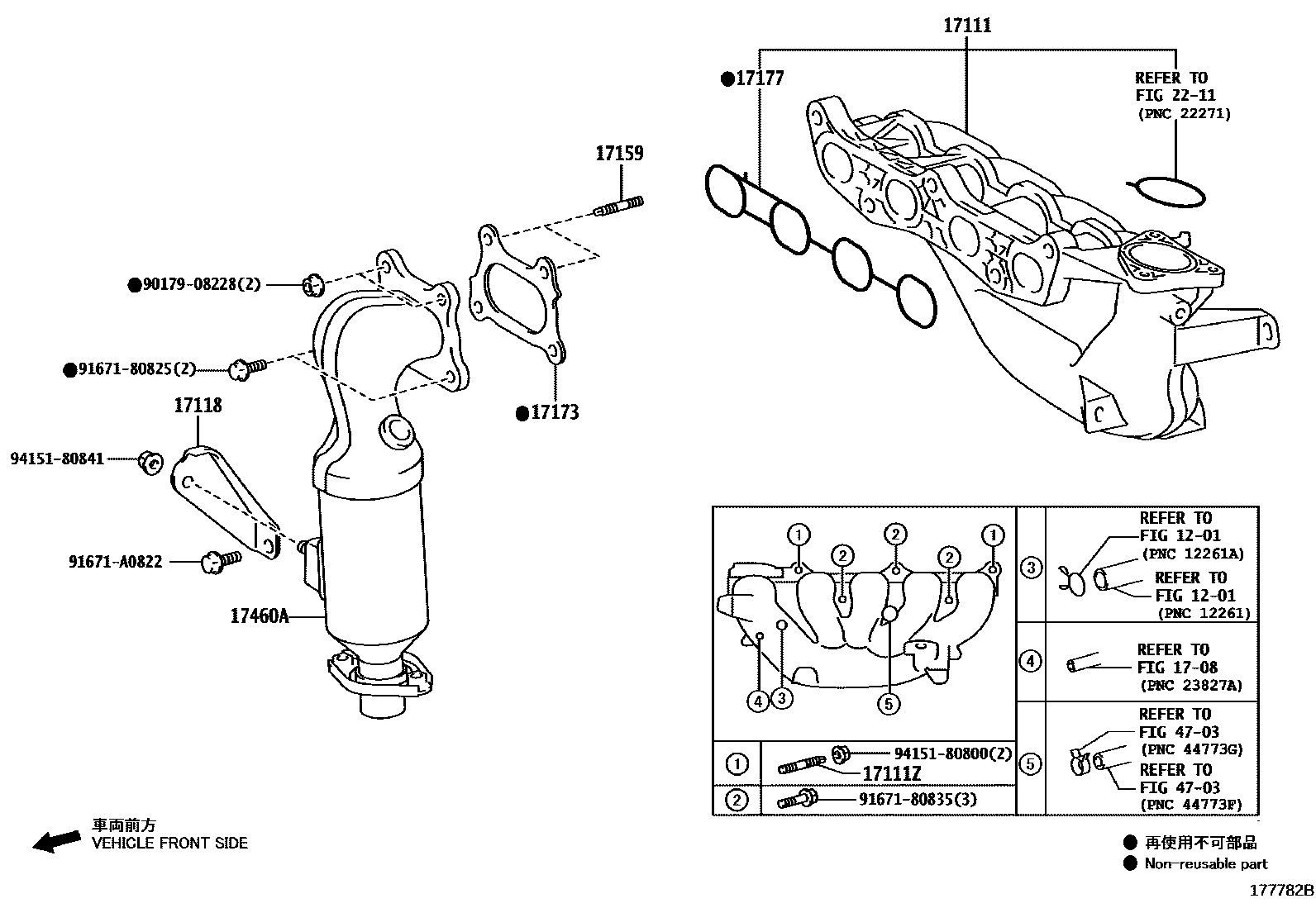

MANIFOLD

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17120-0Y130i1NRFBE,2NR#..NGK1#201604-202103

main17120-0Y131i2NRFE..NGK12,15;2NRFBE..NGK12..XLS;1NRFBE..NGK11..4FC202103

main17120-47050i1NRFBE,2NRFBE..NGK1#201209-201604

main17120-47070i2NRFE..NGK12,15201309-201604

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08060×2i1NRFBE,2NR#..NGK1#201209-201604

main90126-T0019×2i1NRFBE,2NR#..NGK1#..X,XLS,XS201604

17118STAY, MANIFOLD

main17118-0Y050i1NRFBE,2NR#..NGK1#201604-201702

main17118-0Y051i1NRFBE,2NR#..NGK1#201702-201704

main17118-0Y061i1NRFBE,2NR#..NGK1#201705

main17568-0Y030i1NRFBE,2NR#..NGK1#201209-201604

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×2i1NRFBE,2NR#..NGK1#201209-201604

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Y010i1NRFBE,2NR#..NGK1#201209-201604

main17173-0Y050i1NRFBE,2NR#..NGK1#201604

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-47030i2NRFE..NGK12,15201309-201604

main17177-47040i1NRFBE,2NRFBE..NGK1#201209-201604

main17177-47060i1NRFBE,2NR#..NGK1#201604-202308

17460ACONVERTER ASSY, CATALYTIC W/PIPE

main17400-0Y030i1NRFBE,2NRFBE..NGK1#201209-201604

main17400-0Y040i2NRFE..NGK12,15201309-201604

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9017908228

main90179-08228

9167180825

main91671-80825

9167180835

main91671-80835

91671A0822

main91671-A0822

9415180800

main94151-80800

9415180841

main94151-80841

17 parts on this diagram · 2 diagrams in section
