WATER PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1501ENGINE OIL PUMP

→ Go to FIG 15-01

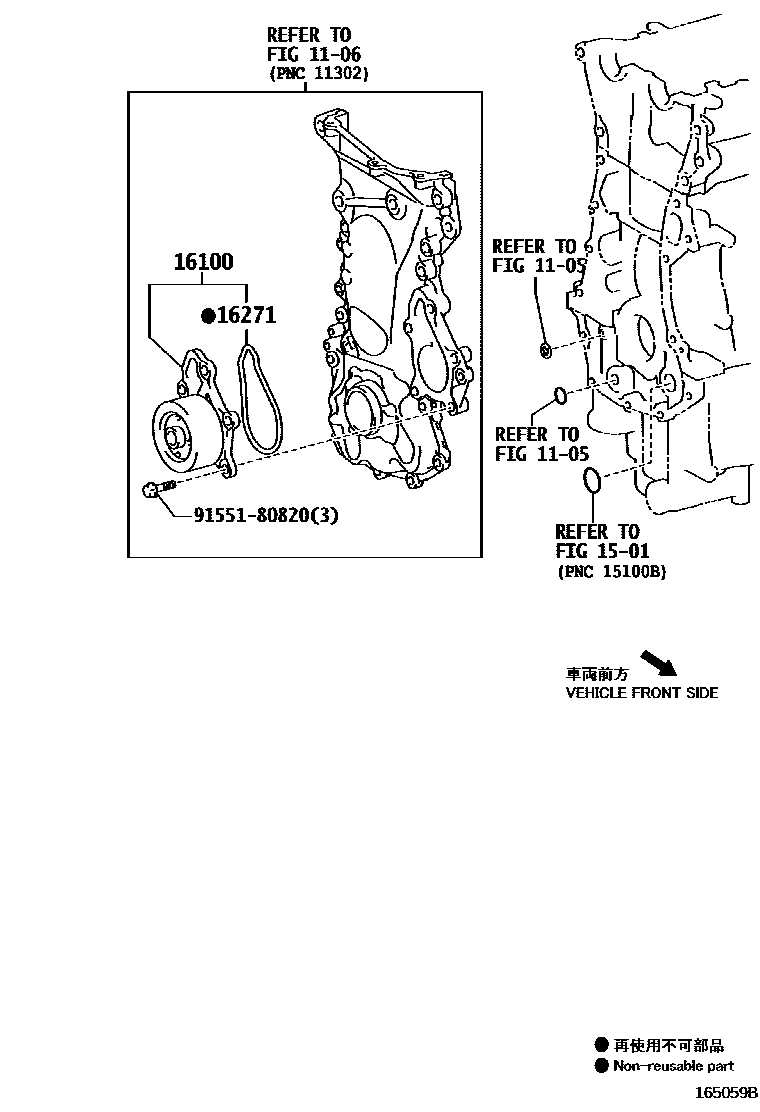

16100PUMP ASSY, ENGINE WATER

main16100-09730i2NR#..NGK12..CROSS201604-201802

main16100-49A05i1NRFBE,2NR#..NGK1#201209-201604

16271GASKET, WATER PUMP

main16271-0Y030i1NRFBE,2NR#..NGK1#..X,XLS,XS201604

main16271-47050i1NRFBE,2NR#..NGK1#201209-201604

9155180820

main91551-80820
