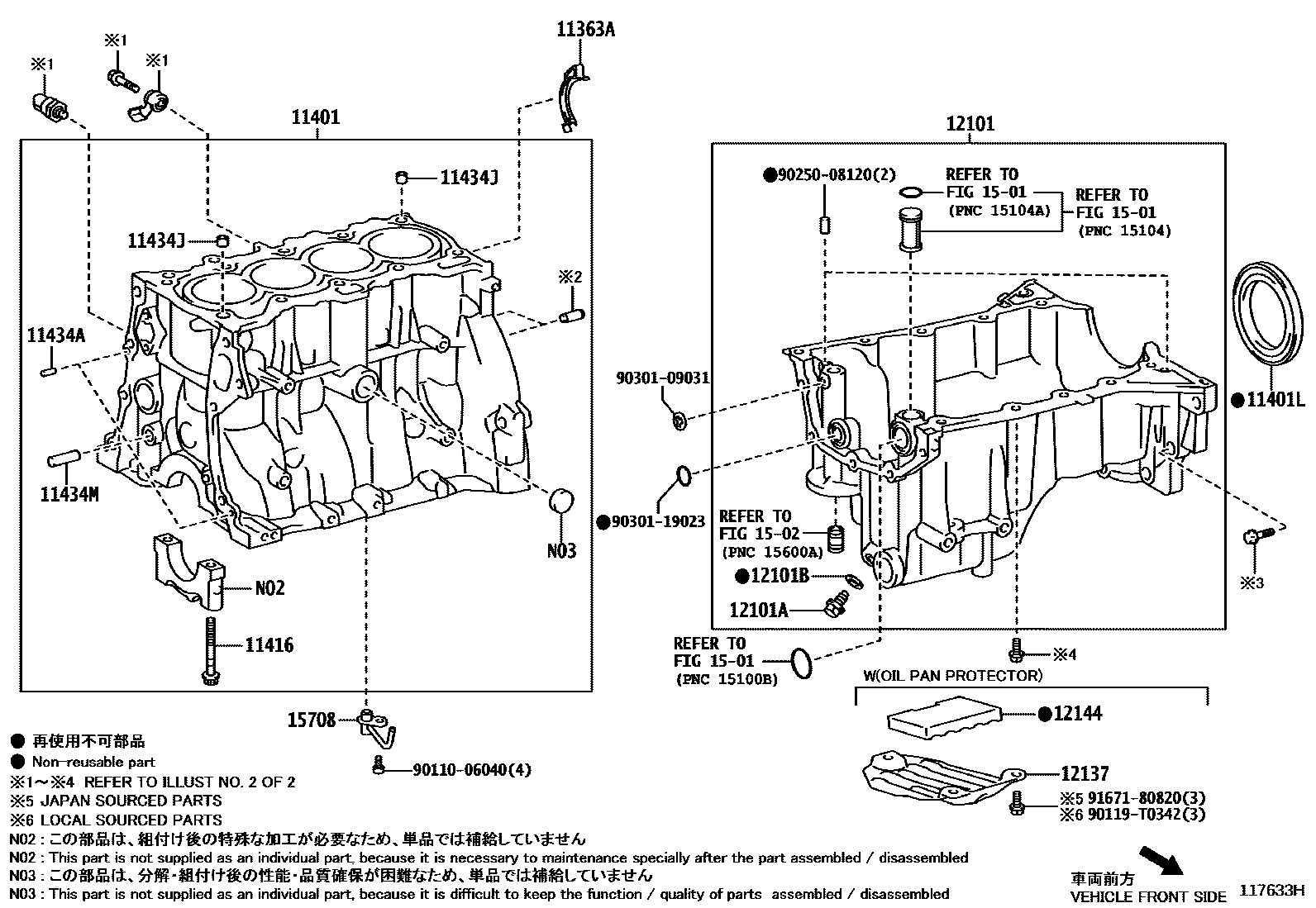

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0Y040i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201604-202103

main11363-40010i1NRFBE,2NR#..NGK1#201209-201604

11401BLOCK SUB-ASSY, CYLINDER

main11401-80805i1NRFBE..NGK11201209-201604

main11401-80806i2NR#..NGK12,15201209-201604

main11410-09725i2NR#..NGK12,15201604-201707

main11410-09735i1NRFBE..NGK11..4FC202108

main11410-49057i1NRFBE..NGK11202003-202108

(J)

main11410-49085i2NR#..NGK12,15202003-202108

(J)

main11410-49095i2NR#..NGK12,15201707-202002

(J)

main11410-49105i1NRFBE..NGK11201707-201903

(J)

main11410-49106i1NRFBE..NGK11201903-202002

(J)

11401LSEAL, ENGINE REAR OIL

main90311-78004i1NRFBE,2NR#..NGK1#201209-201604

main90311-T0074i2NR#..NGK12..CROSS201604-201802

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02175×10i1NRFBE,2NR#..NGK1#..X,XLS,XS201707-202108

(J)

main90910-T2013×10i1NRFBE,2NR#..NGK1#201604

(L)

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i1NRFBE,2NR#..NGK1#201209-201604

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017×2i2NR#..NGK12..(4FC,6F)..CROSS201209-201802

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NRFBE,2NR#..NGK1#201209-201604

12101PAN SUB-ASSY, OIL

main12101-0Y060i1NRFBE,2NR#..NGK1#..X,XLS,XS201604

main12101-47090i1NRFBE,2NR#..NGK1#201209-201502

main12101-47091i1NRFBE,2NR#..NGK1#201503-201604

12101APLUG(FOR OIL PAN DRAIN)

main90341-12032i2NR#..NGK12..(4FC,6F)..CROSS201209-201802

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2NR#..NGK12..(4FC,6F)..CROSS201209-201802

12137PROTECTOR, OIL PAN

main12137-0Y010i2NR#..NGK12..(4FC,6F)..CROSS201601-201802

12144SILENCER, OIL PAN COVER

main12144-47020i2NR#..NGK12..(4FC,6F)..CROSS201601-201802

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1502OIL FILTER

→ Go to FIG 15-02

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0Y040×4i2NR#..NGK12..CROSS201604-201802

main15708-47020×4i1NRFBE,2NR#..NGK1#201209-201604

9011006040

main90110-06040

90119T0342

main90119-T0342

9025008120

main90250-08120

9030109031

main90301-09031

9030119023

main90301-19023

9167180820

main91671-80820

21 parts on this diagram · 4 diagrams in section
