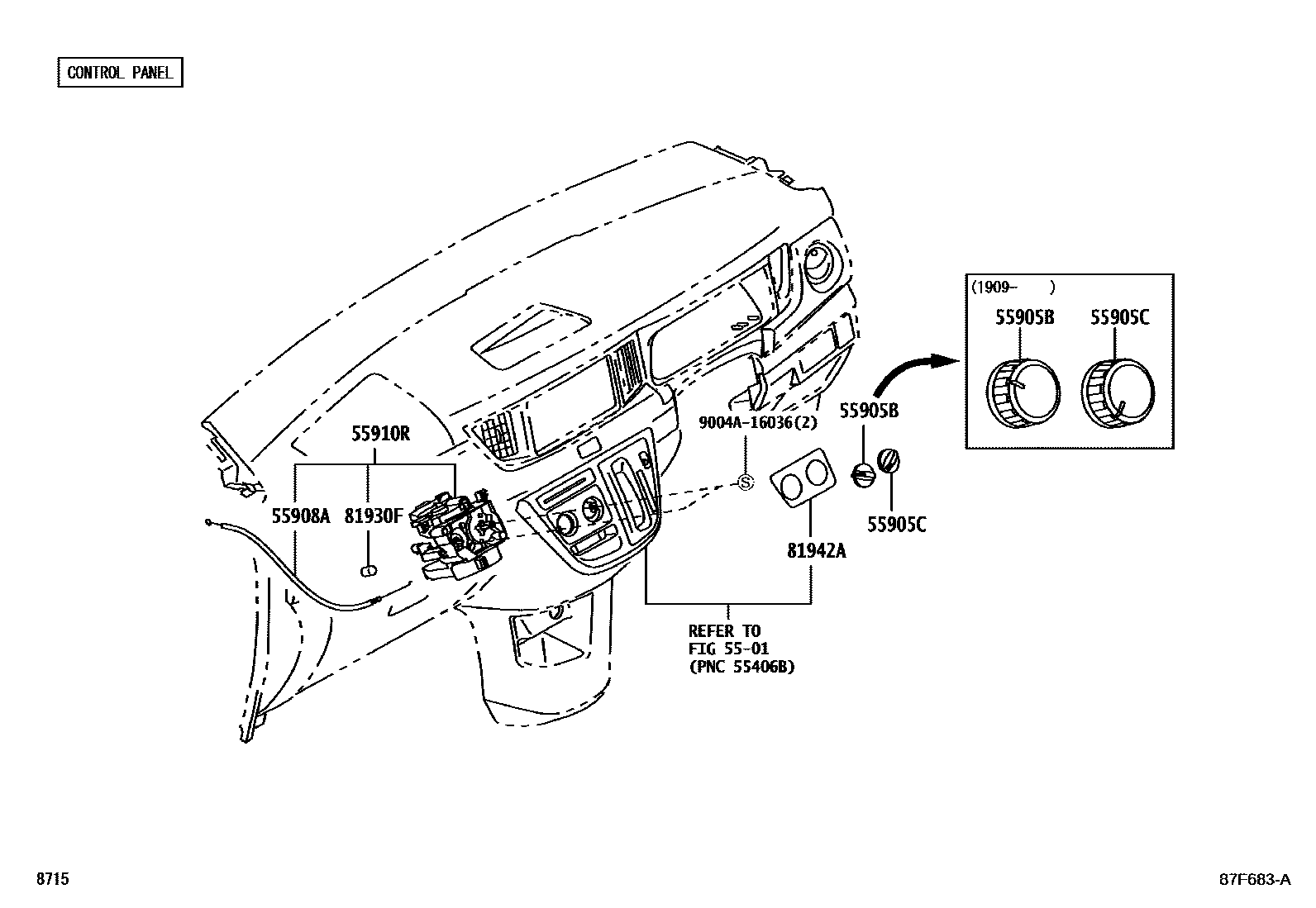

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0004 1 0007 1

5501

55905BKNOB, HEATER CONTROL, NO.2

main55905-BZ220-C0iB401..G201606-201909

BLACK,TRIM4#,FAN

main55905-BZ350-C0iB401..5F..E201909-202207

BLACK,TRIM4#,FAN

main55905-BZ380-C0iB401..E201606-201909

BLACK,TRIM4#,FAN

main55905-BZ400-B0iB401..G201909-202207

SILVER,TRIM4#,FAN

55905CKNOB, HEATER CONTROL, NO.3

main55905-BZ220-C0iB401..G201606-201909

BLACK,TRIM4#,A/C

main55905-BZ350-C0iB401..E201909-202207

BLACK,TRIM4#,A/C

main55905-BZ380-C0iB401..E201606-201909

BLACK,TRIM4#,A/C

main55905-BZ400-B0iB401..G201909-202207

SILVER,TRIM4#,A/C

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-BZ140iB401201606-202207

55910RCONTROL ASSY, HEATER

main55910-BZ510iB401..G;B401..5F..E201606-202207

81930FBULB, HEATER CONTROL INDICATOR LAMP

main9004B-81027iB401201606-202207

14V 3.0W

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-BZ840iB401201606-202207

9004A16036

main9004A-16036

8 parts on this diagram · 3 diagrams in section
