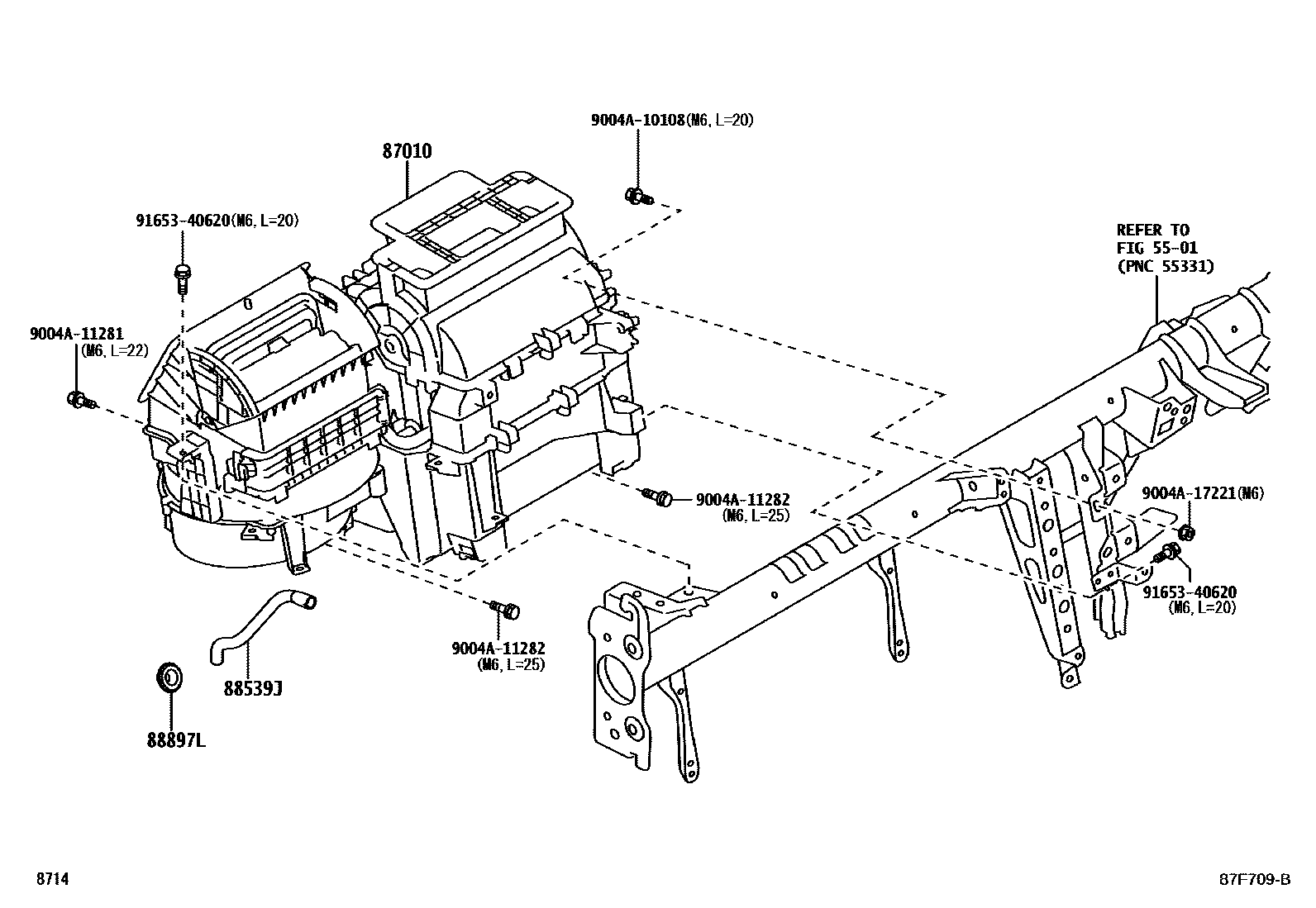

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0004 1 0007 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

87010UNIT ASSY, AIR CONDITIONER

main87010-BZ410iB401202207

88539JHOSE, DRAIN COOLER

main88539-BZ260iB401201909-202207

88897LGROMMET (FOR DRAIN HOSE)

main88897-87Z13iB401201909-202207

9004A10108

main9004A-10108

9004A11281

main9004A-11281

9004A11282

main9004A-11282

9004A17221

main9004A-17221

9165340620

main91653-40620

9 parts on this diagram · 3 diagrams in section
