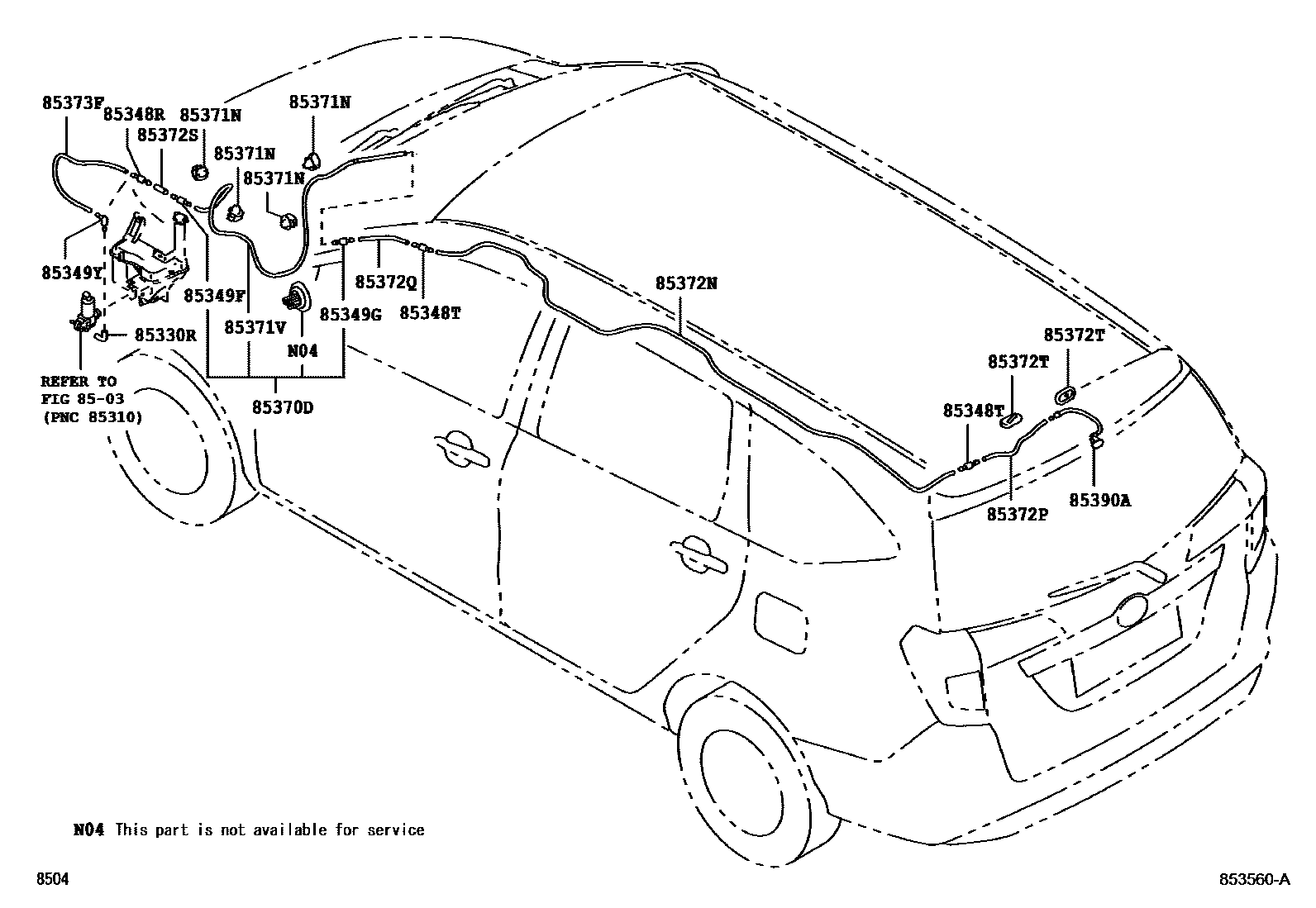

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85330RJAR ASSY, REAR WASHER

main85355-87701iB401201606-201909

85348RJOINT, REAR WASHER HOSE, NO.1

main85317-BZ080iB401201606-201909

85348TJOINT, REAR WASHER HOSE, NO.2

main85317-BZ080×2iB401201606-201909

85349FJOINT, REAR WASHER HOSE, NO.1

main85317-BZ080iB401201606-201909

85349GJOINT, REAR WASHER HOSE, NO.2

main85317-BZ080iB401201606-201909

85349YJOINT, REAR WASHER ELBOW, NO.5

main85349-87602iB401201606-201909

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-BZA60iB401201606-201909

85371NCLAMP, REAR WASHER HOSE

main82711-BZ100×4iB401201606-201909

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main85374-BZB80iB401201606-201909

*H,L=1740

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main85374-BZC30iB401201606-201909

*H,L=170

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main85374-BZ310iB401201606-201909

*H,L=250

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main85374-BZC10iB401201606-201909

*H,L=170

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main85374-BZ720iB401201606-201909

*H,L=50

85372TGROMMET, WASHER

main85373-BZ010×2iB401201606-201909

85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8

main85374-BZB30iB401201606-201909

*H,L=230

85390ANOZZLE & HOSE ASSY, RR WASHER

main85390-BZ230iB401201606-201909

17 parts on this diagram · 1 diagram in section
