WIRELESS DOOR LOCK

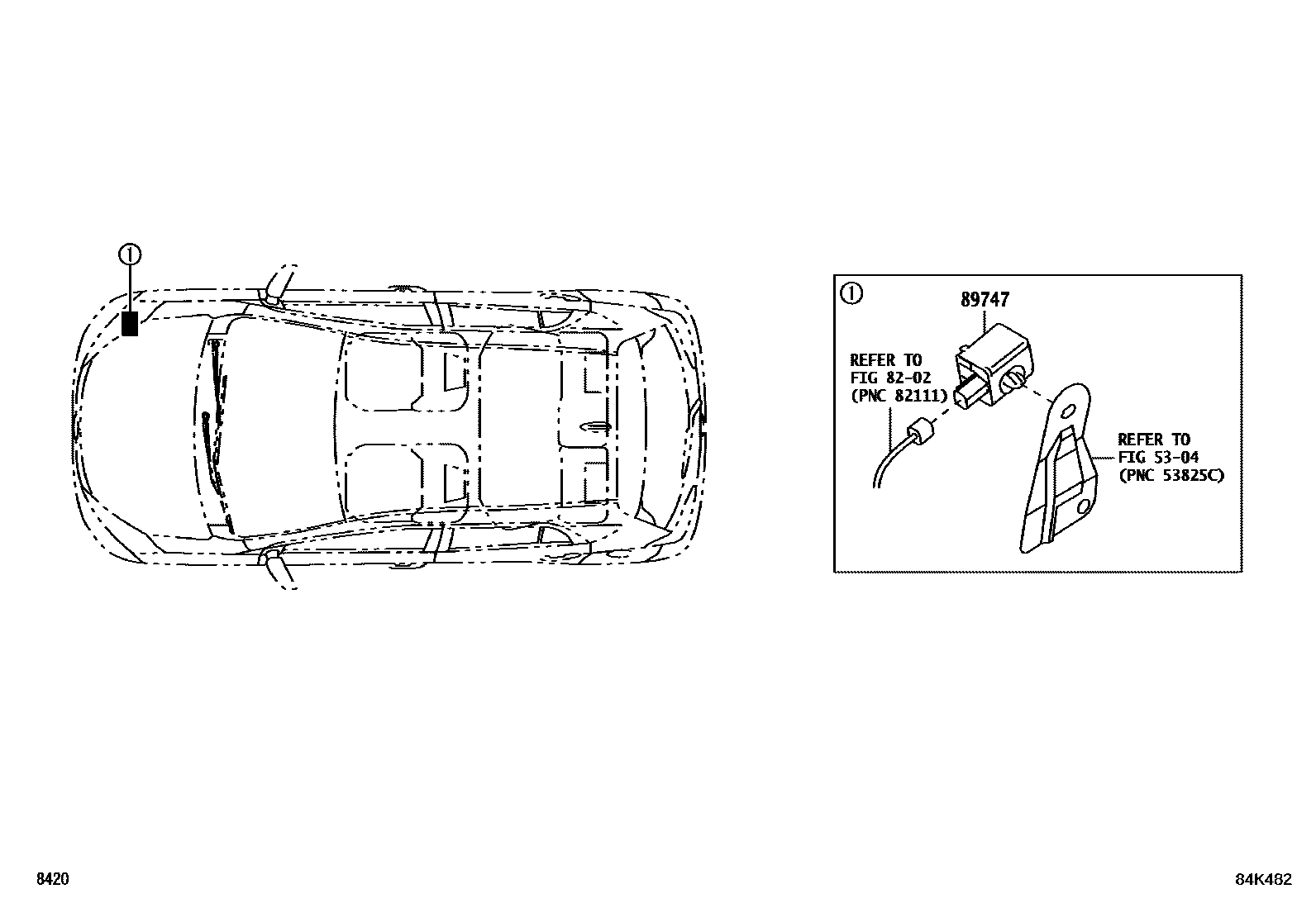

Parts diagram

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

8202WIRING & CLAMP

→ Go to FIG 82-02

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i201909-202207

3 parts on this diagram · 1 diagram in section
