WIRING & CLAMP

0001 1ENGINE ROOM MAIN 0004 1ENGINE 0007 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0012 1DOOR,ROOF,BACK DOOR 0015 1FLOOR

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

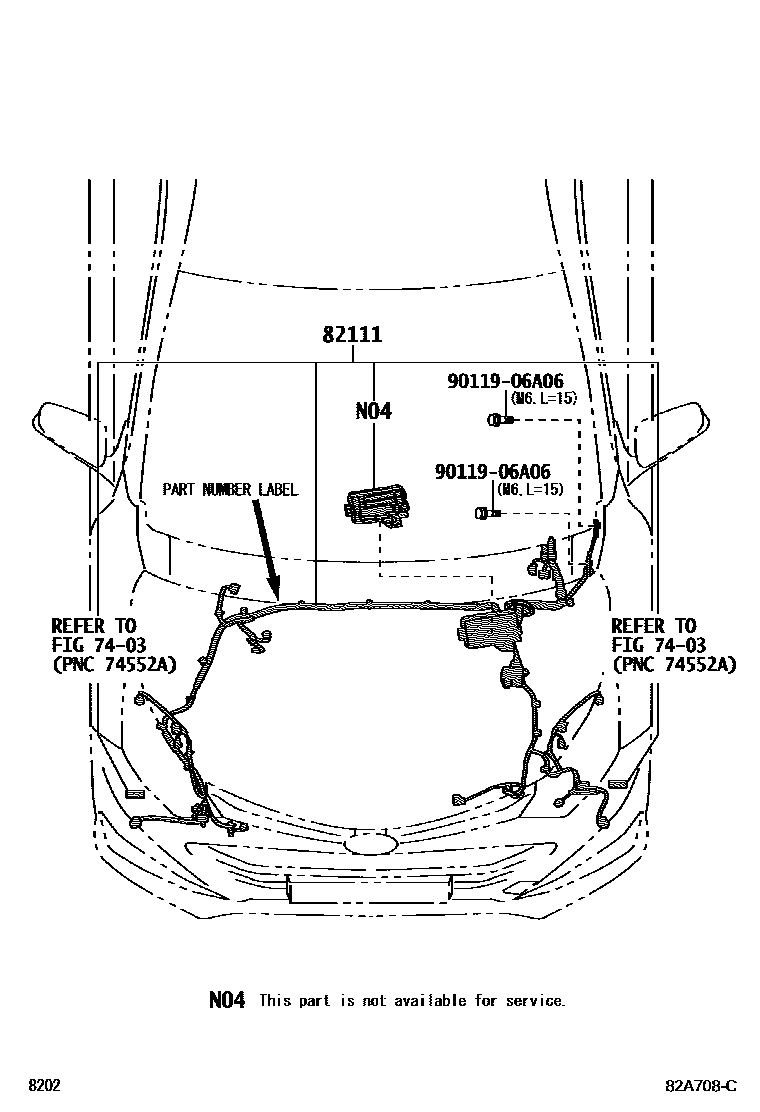

82111WIRE, ENGINE ROOM MAIN

main82111-BY510supersedes 82111-BY520iB401..4FC;B401..5F..G; B401..5F..E201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

main82111-BZV30supersedes 82111-BZV50iB401..4FC; B401..5F201606-201909

ABS (ANTI-LOCK BRK SYSTM)-ABS

9011906A06

main90119-06A06

3 parts on this diagram · 6 diagrams in section
