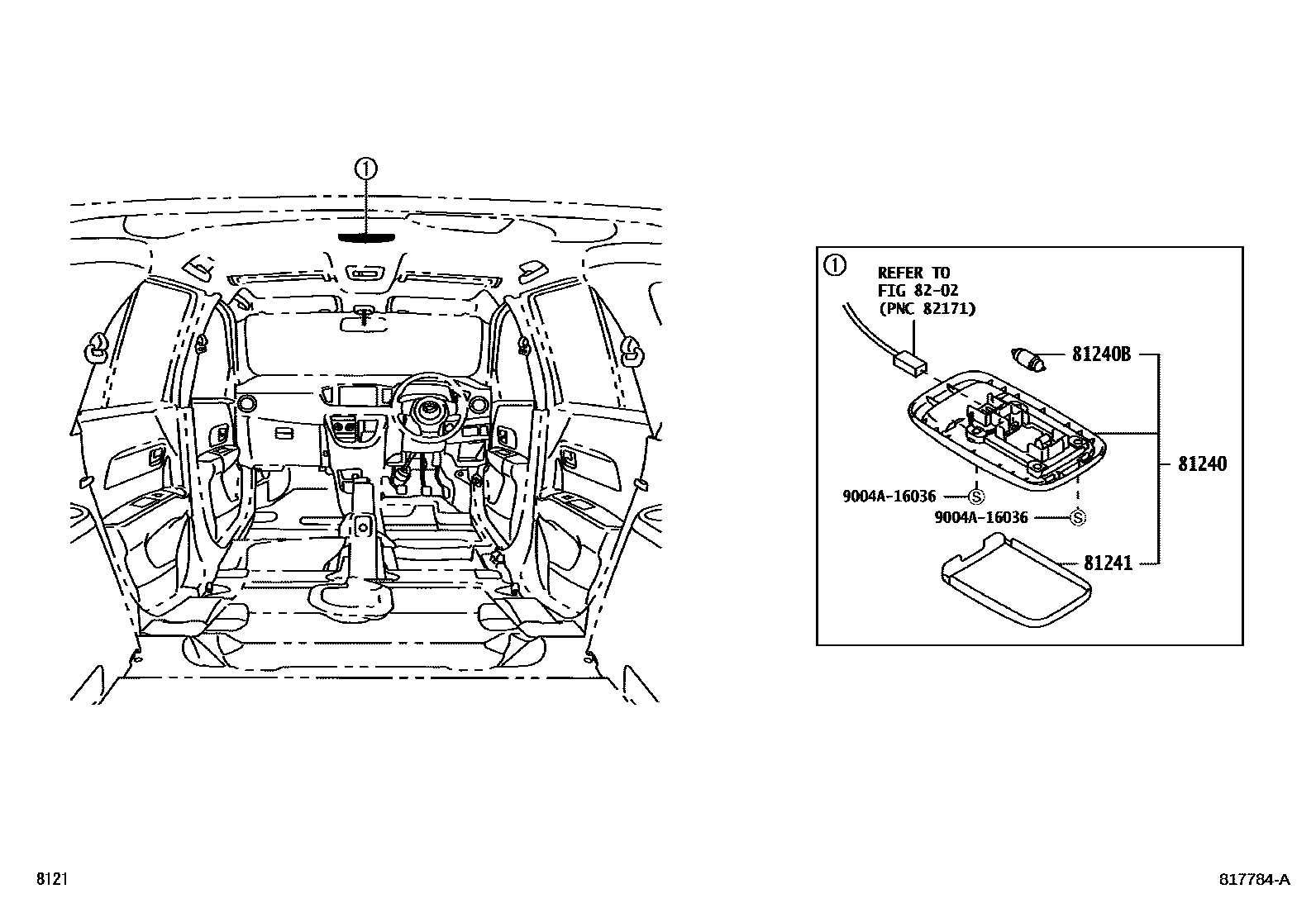

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-BZ010-B0iB401201909-202207

LT.GRAY,TRIM4#

main81240-BZ010-C0iB401..G;B401..5F..E202207

BLACK,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90049-51153iB401..G;B401..5F..E202207

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-BZ010iB401201909-202207

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A16036

main9004A-16036

5 parts on this diagram · 1 diagram in section
