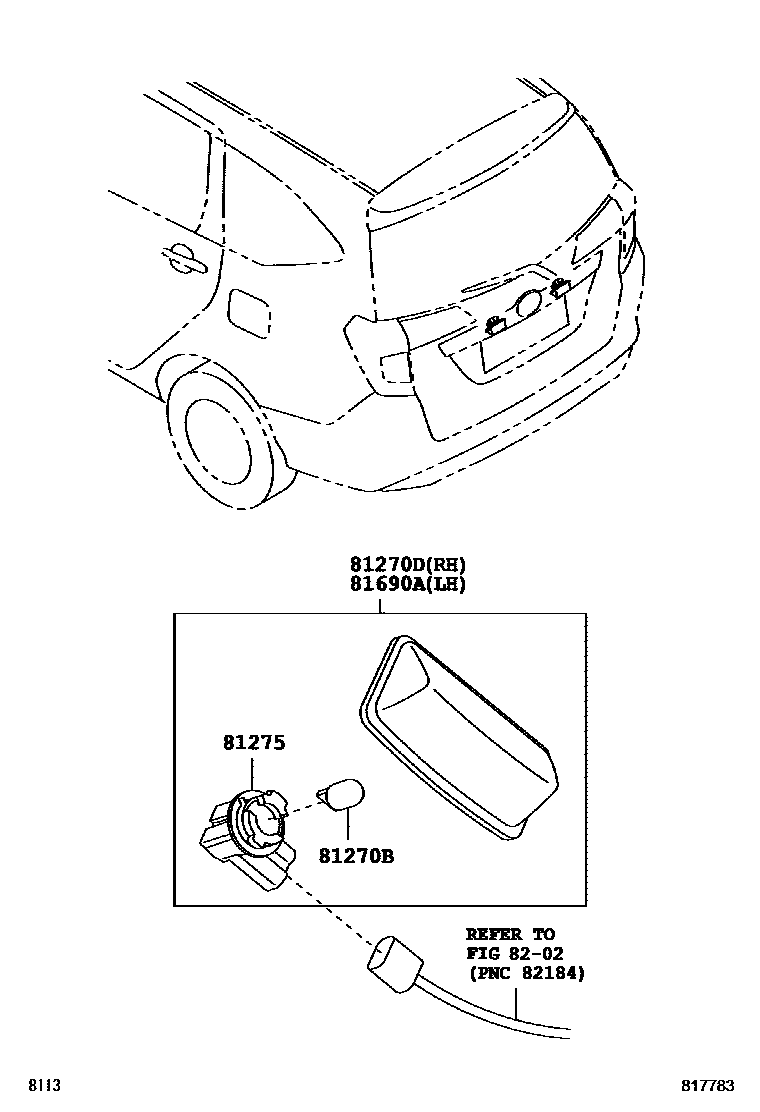

REAR LICENSE PLATE LAMP

81270BBULB (FOR LICENSE PLATE LAMP)

main9004A-81006×2iB401201909-202207

12V 5W

81270DLAMP ASSY, LICENSE PLATE, RH

main81270-BZ010iB401201909-202207

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12501×2iB401201909-202207

81690ALAMP ASSY, LICENSE PLATE, LH

main81270-BZ010iB401201909-202207

8202WIRING & CLAMP

→ Go to FIG 82-02

5 parts on this diagram · 1 diagram in section
