SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

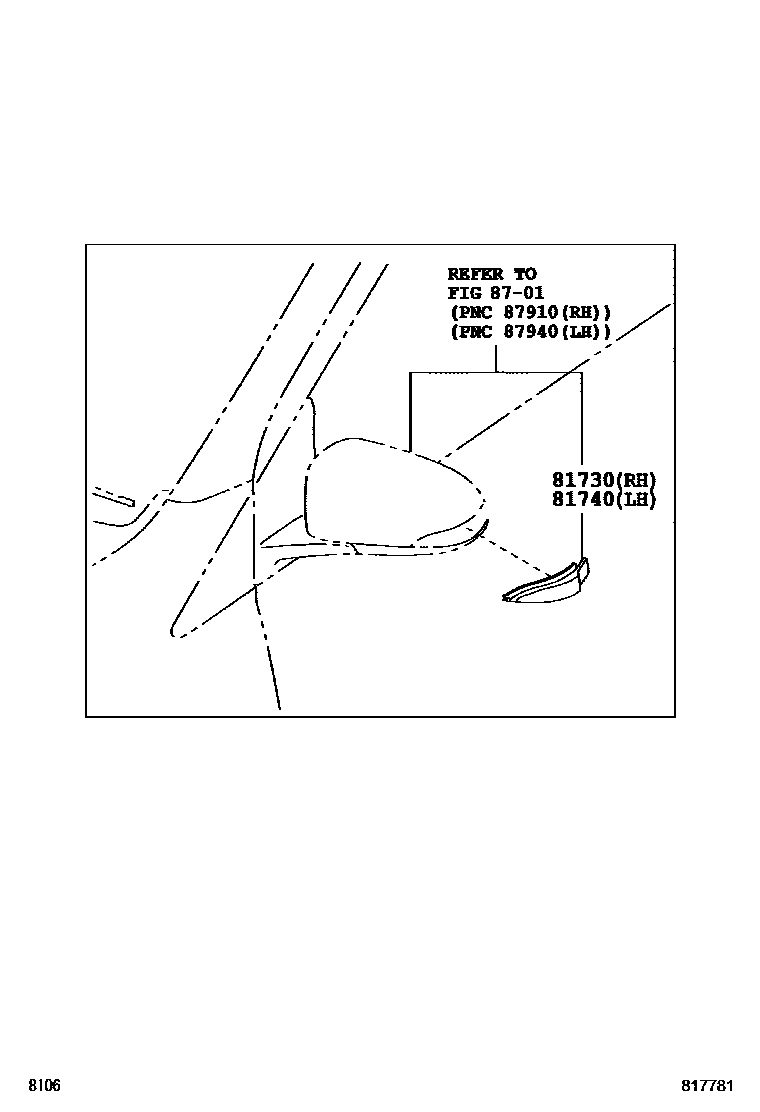

Parts diagram

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-BZ180i201909-202207

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-BZ100i201909-202207

8701MIRROR

→ Go to FIG 87-01

3 parts on this diagram · 1 diagram in section
