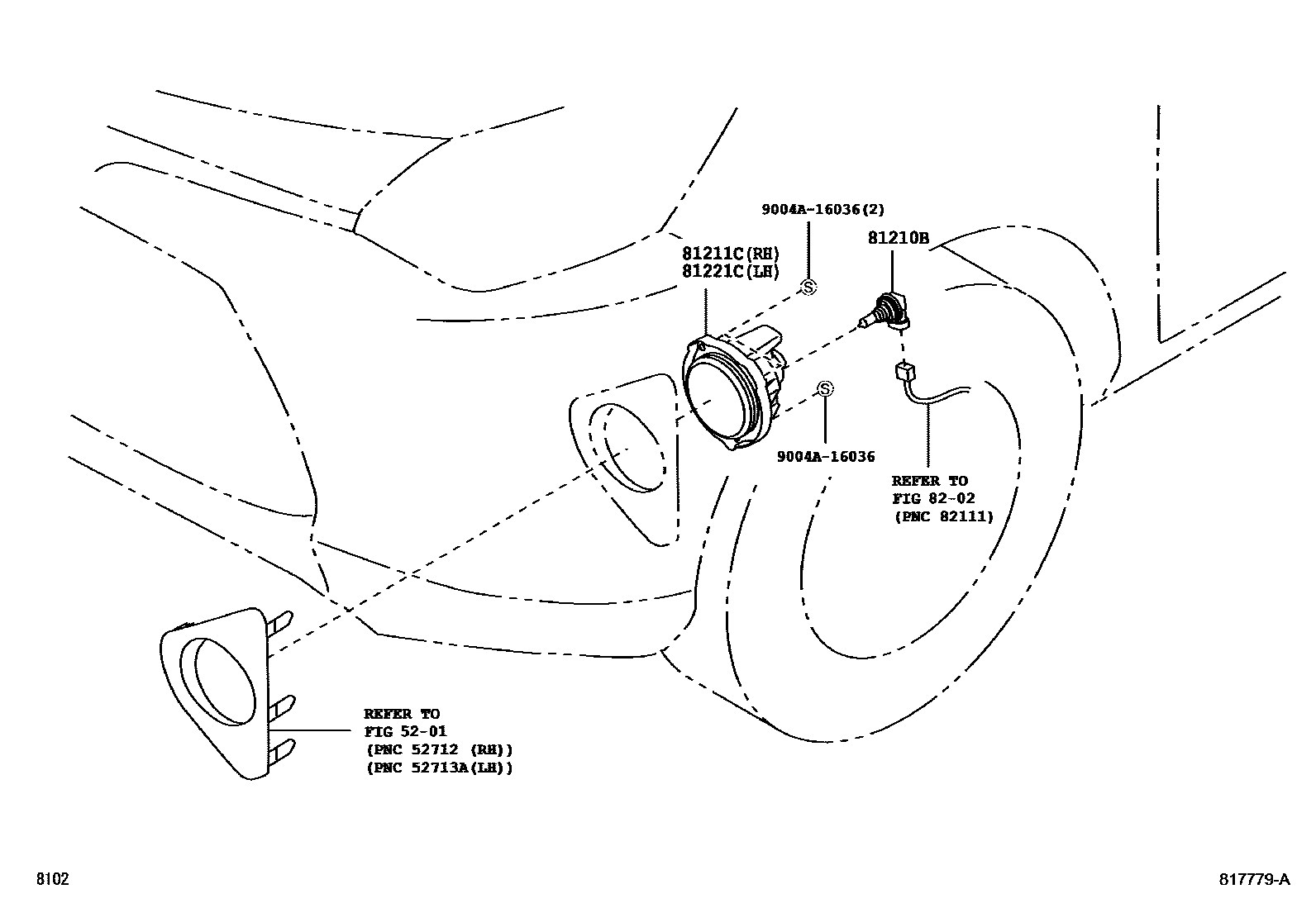

FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210BBULB, FOG LAMP

main90049-51185×2iB401..G201909-202207

12V 19W H16

81211CLAMP UNIT, FOG LAMP, RH

main81211-BZ060iB401..G201909-202207

81221CLAMP UNIT, FOG LAMP, LH

main81221-BZ060iB401..G201909-202207

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A16036

main9004A-16036

6 parts on this diagram · 1 diagram in section
