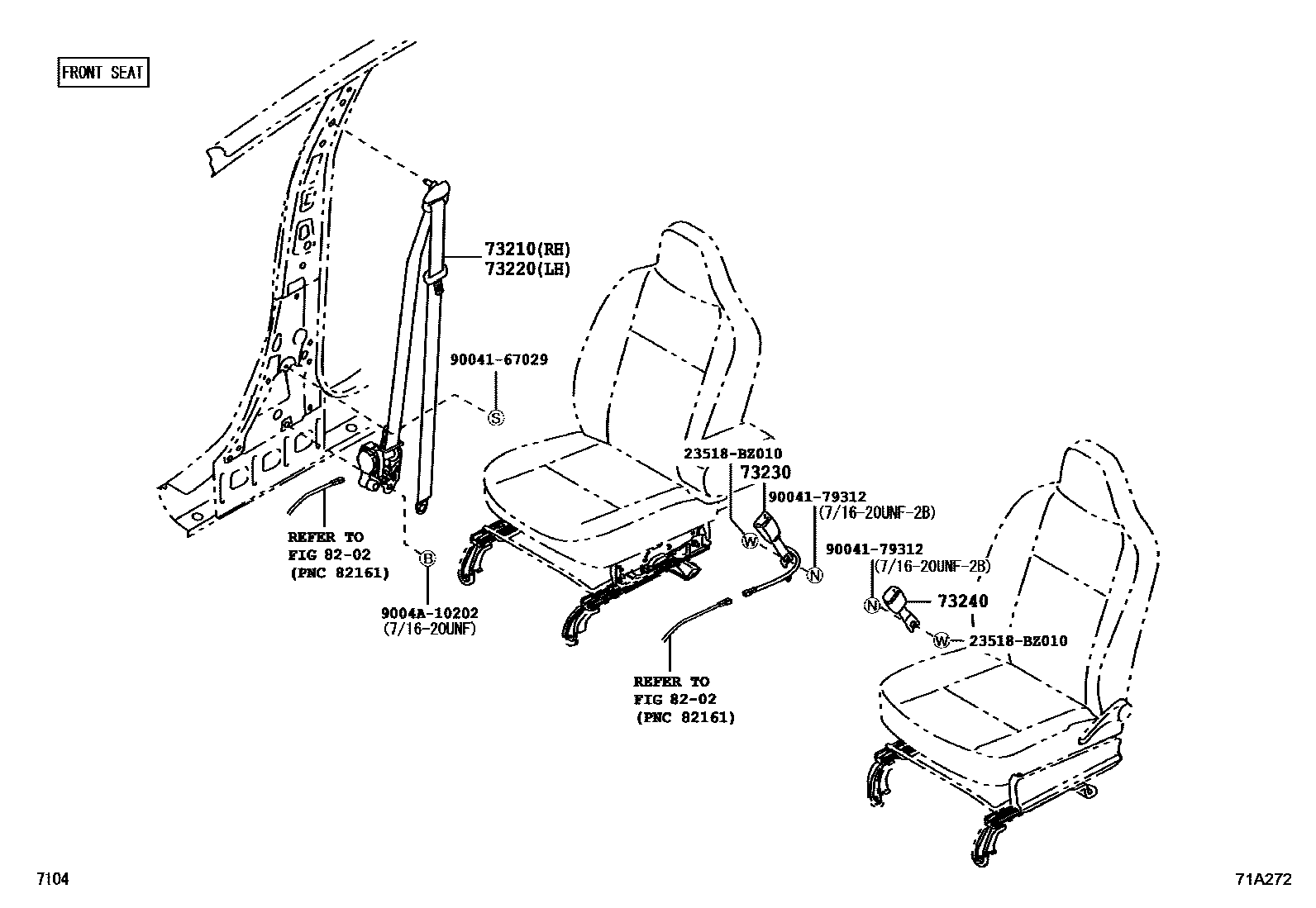

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0004 1RR NO.1 SEAT 0007 1RR NO.2 SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-BZ530-B0iB401201606-201909

SHADOW GRAY,TRIM4#

main73210-BZ531-B0iB401202402

SHADOW GRAY,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-BZ520-B0iB401201909-202207

SHADOW GRAY,TRIM4#

main73220-BZ521-B0iB401202402

SHADOW GRAY,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-BZ590-B0iB401201909-202207

DK.GRAY,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-BZ790-B0iB401201909-202207

DK.GRAY,TRIM4#

8202WIRING & CLAMP

→ Go to FIG 82-02

23518BZ010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-BZ010

9004167029

main90041-67029

9004179312

main90041-79312

9004A10202

main9004A-10202

9 parts on this diagram · 3 diagrams in section
