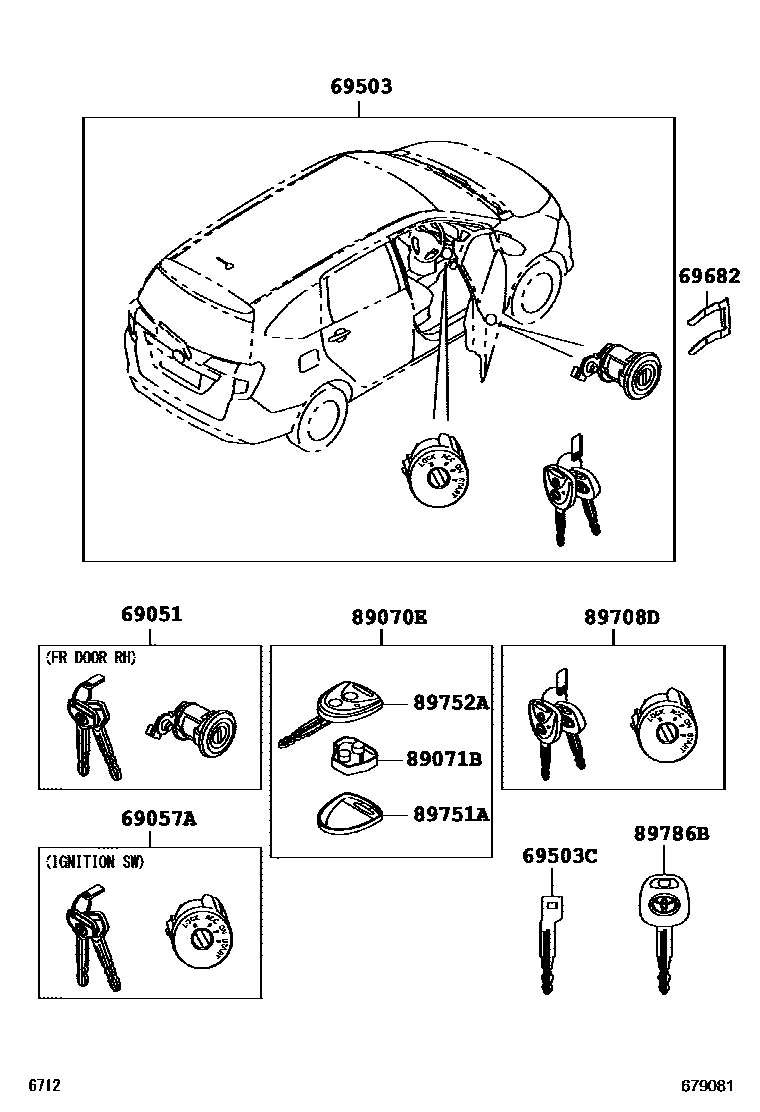

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-BZ150iB401201909-202207

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-BZ130iB401201909-202207

69503CYLINDER SET, LOCK

main69005-BZ640iB401201909-202207

main69005-BZ641iB401202309

main69005-BZ770iB401201606-201909

69503CKEY, SUB

main69516-BZ020iB401201606-201909

69682RETAINER, LOCK CYLINDER

main69682-B2020iB401201909-202207

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-BZ270iB401201909-202207

main89070-BZ271iB401202309

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-BZ050iB401201909-202207

main89071-BZ051iB401202309

89708DCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main89708-BZ130iB401201606-201909

main89708-BZ210iB401201909-202207

main89708-BZ211iB401202309

89751ACOVER, TRANSMITTER HOUSING

main89751-BZ030iB401201606-201909

89752ACASE, TRANSMITTER HOUSING

main89752-BZ200iB401201909-202207

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89785-BZ190iB401201606-201909

BLANK KEY

11 parts on this diagram · 2 diagrams in section
