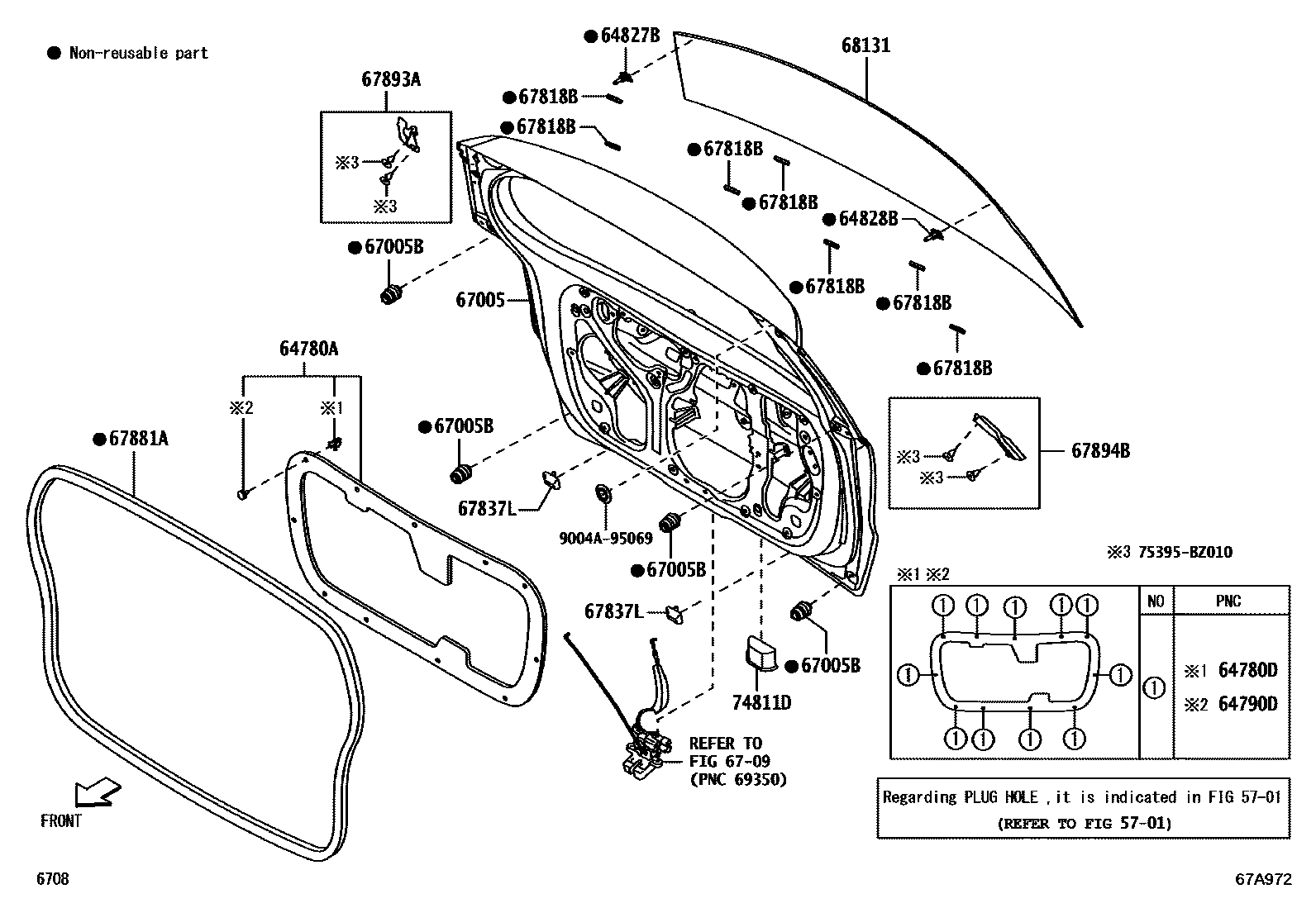

BACK DOOR PANEL & GLASS

0001 1 0004 1

5701

64780APANEL ASSY, BACK DOOR TRIM

main64780-BZ170-C0iB401201606-201702

BLACK,TRIM4#

main64780-BZ170-C1iB401201702-202207

BLACK,TRIM4#

64780DRETAINER(FOR BACK DOOR TRIM BOARD)

main67771-B5020-B2iB401201606-201704

DK.GRAY,TRIM4#

sub67771-B5020

main67771-B5020-C0iB401..G;B401..5F..E201704-202207

BLACK,TRIM4#

sub67771-B5020

64790DCAP, BACK DOOR TRIM PANEL

main67772-87701iB401201606-202207

64827BCLIP, BACK WINDOW GLASS, RH

main64827-BZ100iB401201606-202207

64828BCLIP, BACK WINDOW GLASS, LH

main64828-BZ070iB401201606-202207

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZA50iB401201606-201909

main67005-BZD40iB401..G;B401..5F..E201909-202207

67005BCUSHION(FOR BACK DOOR PANEL)

main9004A-54016iB401201606-202207

6709

67818BSPACER, BACK WINDOW GLASS

main64818-BZ050iB401201606-202207

67837LSEAL, DOOR DUST PROOF

main67837-BZ030iB401201606-202207

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ160iB401201606-202207

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-BZ030iB401201606-202207

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-BZ030iB401201606-202207

68131GLASS, BACK DOOR

main68131-BZ520iB401201606-202207

74811DHANDLE, DOOR PULL

main74811-BZ030iB401201606-202207

75395BZ010CLIP, BACK DOOR MOULDING, NO.1

main75395-BZ010

9004A95069

main9004A-95069

18 parts on this diagram · 2 diagrams in section
