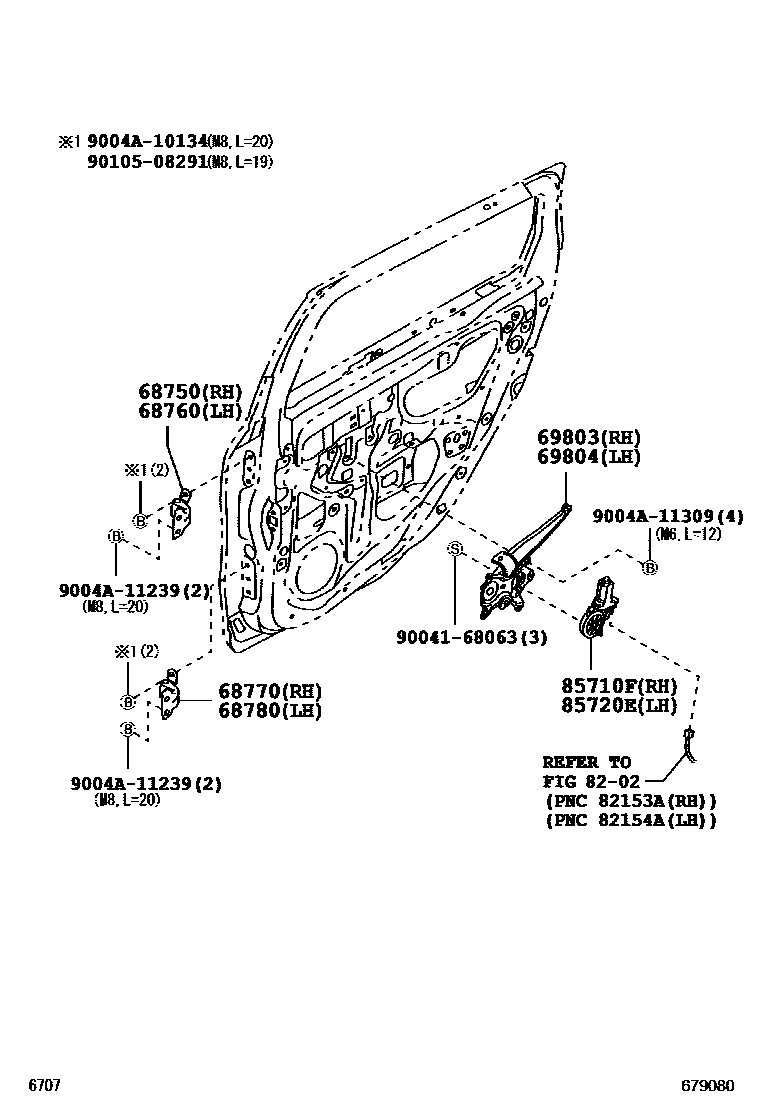

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-BZ010iB401..G;B401..5F..E202207

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-BZ010iB401201909-202207

68770HINGE ASSY, REAR DOOR, LOWER RH

main68760-BZ010iB401201909-202207

68780HINGE ASSY, REAR DOOR, LOWER LH

main68750-BZ010iB401201909-202207

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-BZ100iB401202207

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-BZ100iB401202207

8202WIRING & CLAMP

→ Go to FIG 82-02

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-BZ042iB401201606-201909

main85720-BZ240iB401202312

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-BZ042iB401201909-202207

main85710-BZ270iB401202312

9004168063

main90041-68063

9004A10134

main9004A-10134

9004A11239

main9004A-11239

9004A11309

main9004A-11309

9010508291

main90105-08291

14 parts on this diagram · 1 diagram in section
