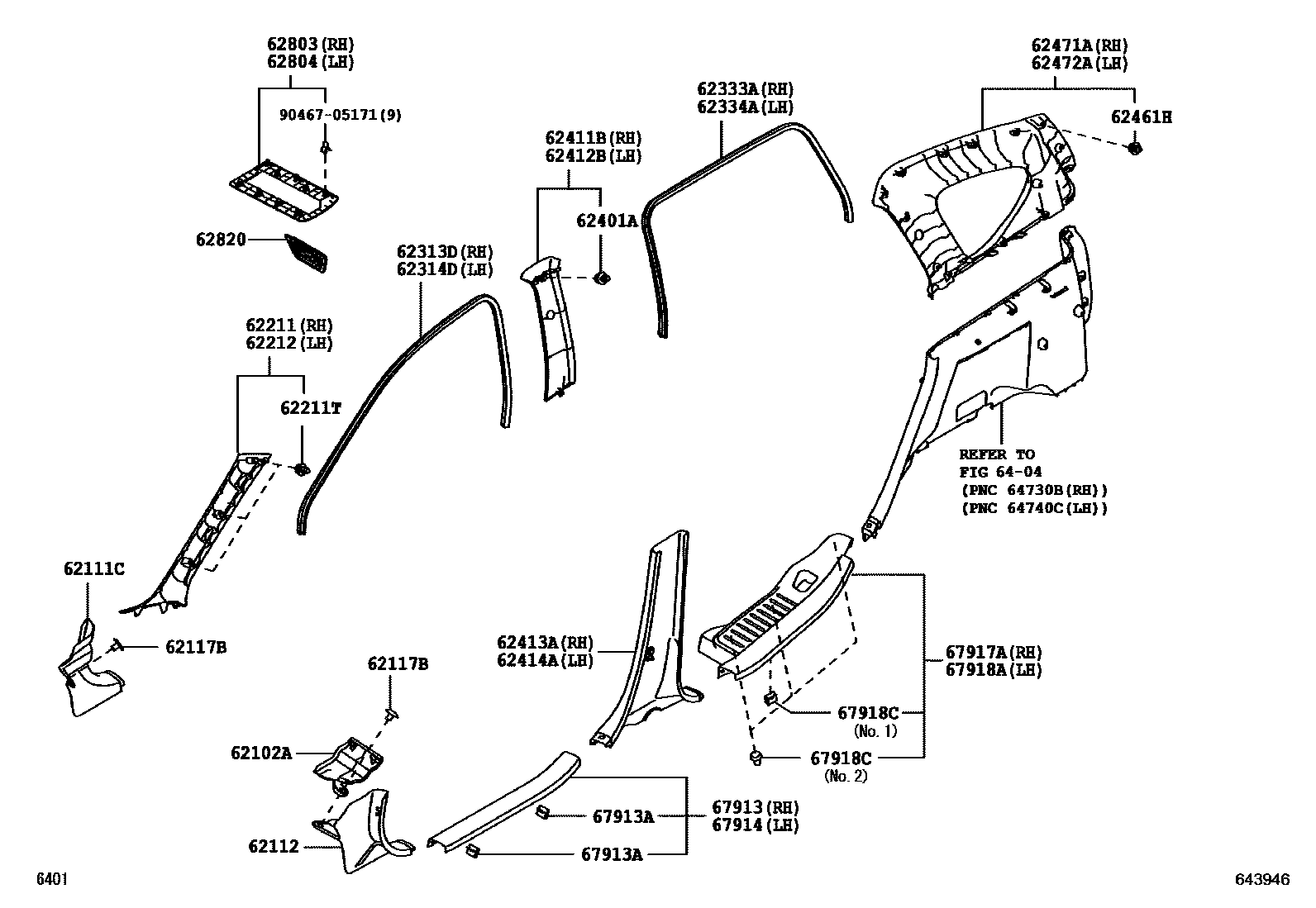

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62102ABOARD SUB-ASSY, COWL SIDE TRIM, LOWER LH

main62114-BZ010-B0iB401201606-202207

DK.GRAY,TRIM4#

62111CBOARD, COWL SIDE TRIM, RH

main62111-BZ230-B0iB401..G;B401..5F..E201606-202207

DK.GRAY,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-BZ230-B0iB401201606-202207

DK.GRAY,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main9004A-46131-B0iB401201606-201702

DK.GRAY,TRIM4#

main9004A-46131-C1iB401201702-202207

BLACK,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-BZ250-B0iB401201606-202207

LT.GRAY,TRIM4#

main62211-BZ250-B1iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main9004A-46275iB401201606-202207

62212GARNISH, FRONT PILLAR, LH

main62212-BZ240-B0iB401201606-202207

LT.GRAY,TRIM4#

main62212-BZ240-B1iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-B6010iB401201606-201706

main62313-BZ270iB401201707-202207

62314DTRIM, FRONT DOOR OPENING, LH

main62313-B6010iB401201606-201706

main62313-BZ270iB401201707-202207

62333ATRIM, REAR DOOR OPENING, RH

main62333-B6010iB401201606-201706

main62333-BZ290iB401201707-202207

62334ATRIM, REAR DOOR OPENING, LH

main62334-B6010iB401201606-201706

main62334-BZ140iB401..G;B401..5F..E201707-202207

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main9004A-46275iB401201606-202207

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-BZ190-B0iB401201606-202207

LT.GRAY,TRIM4#

main62411-BZ190-B1iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-BZ190-B0iB401201606-202207

LT.GRAY,TRIM4#

main62412-BZ190-B1iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-BZ190-B0iB401201606-202207

DK.GRAY,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-BZ190-B0iB401201606-202207

DK.GRAY,TRIM4#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main9004A-46275iB401201606-202207

62471AGARNISH, ROOF SIDE, INNER RH

main62471-BZ340-B0iB401201606-202207

LT.GRAY,TRIM4#

main62471-BZ340-B1iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-BZ330-B0iB401201606-202207

LT.GRAY,TRIM4#

main62472-BZ330-B1iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

62803GRILLE SUB-ASSY, ROOM VENTILATION, RH

main62821-BZ010-B0iB401201606-202207

LT.GRAY,TRIM4#

main62821-BZ010-B2iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

62804GRILLE SUB-ASSY, ROOM VENTILATION, LH

main62822-BZ010-B0iB401201606-202207

LT.GRAY,TRIM4#

main62822-BZ010-B2iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

62820GRILLE, ROOM VENTILATOR

main62961-BZ050-B0iB401201606-201708

LT.GRAY,TRIM4#

main62961-BZ051-B0iB401201709-202207

LT.GRAY,TRIM4#

main62961-BZ051-B2iB401..G;B401..5F..E202207

DK.GRAY,TRIM4#

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

67913PLATE, FRONT DOOR SCUFF, RH

main67913-BZ140-B0iB401..G;B401..5F..E201606-202207

DK.GRAY,TRIM4#

67913ACLIP(FOR SCUFF PLATE)

main90044-68288iB401201606-202207

67914PLATE, FRONT DOOR SCUFF, LH

main67914-BZ140-B0iB401201606-202207

DK.GRAY,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-BZ210-B0iB401..G;B401..5F..E201606-202207

DK.GRAY,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-BZ210-B0iB401201606-202207

DK.GRAY,TRIM4#

67918CCLIP(FOR REAR SCUFF PLATE)

main90044-68288iB401201606-202207

NO.1

main9004A-46302iB401201606-202207

NO.2

9046705171

main90467-05171

30 parts on this diagram · 1 diagram in section
