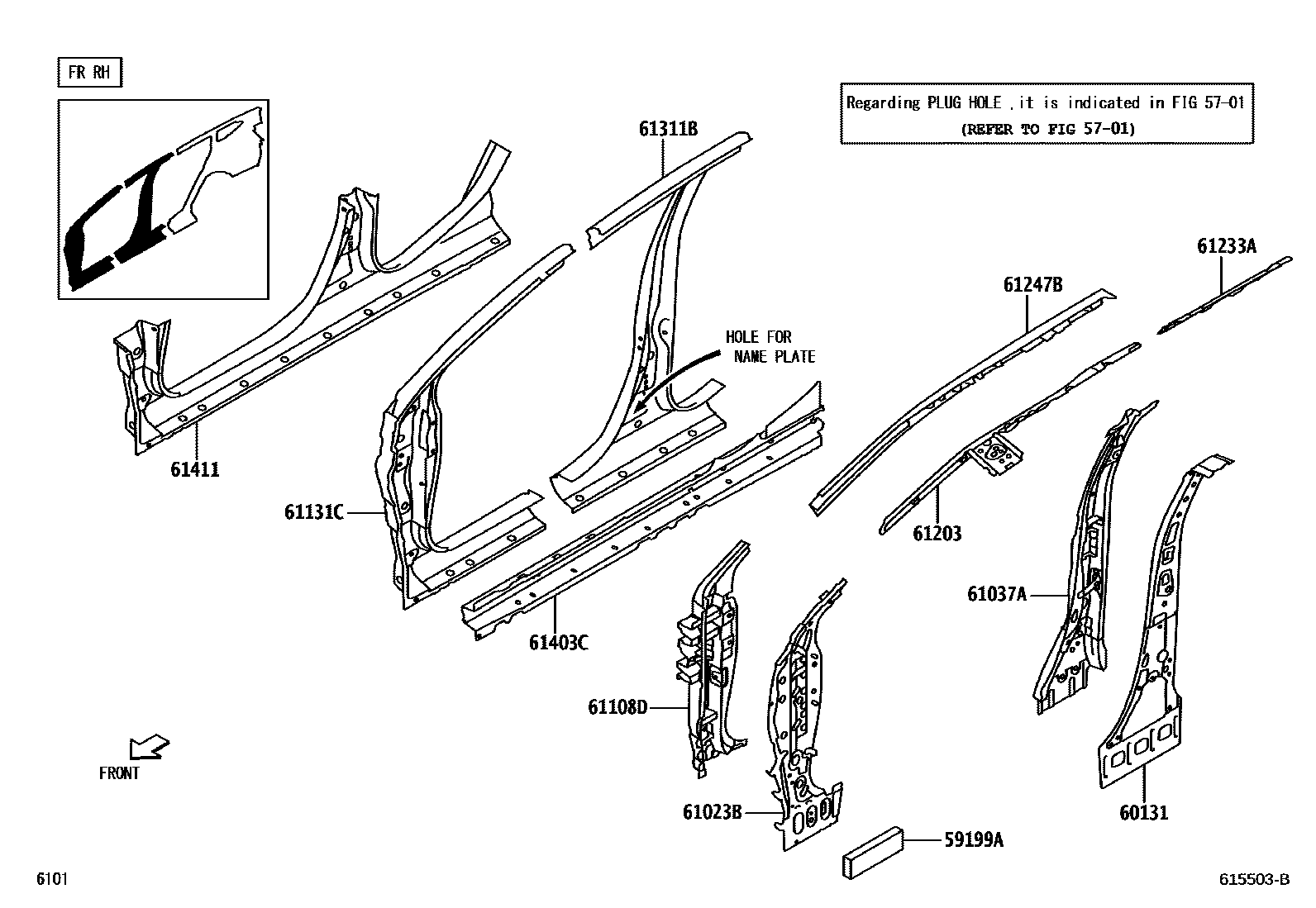

SIDE MEMBER

0001 1FR RH 0004 1RR RH 0007 1FR LH 0010 1RR LH 0013 1

5701HOLE PLUG

→ Go to FIG 57-01

59199ASEAL, NOISE SHUTTER, NO.2

main59199-BZ050×2iB401..G;B401..5F..E202207

60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

main60131-BZ120iB401201909-202207

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-BZ340iB401201909-202207

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-BZ270iB401201909-202207

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-BZ200iB401201909-202207

61131CPILLAR, FRONT BODY, OUTER RH

main61131-BZ370iB401201909-202207

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-BZ090iB401201606-201909

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-BZ080iB401201909-202207

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-BZ120iB401201909-202207

61311BPILLAR, CENTER BODY, OUTER RH

main61311-BZ250iB401201606-201906

W/HOLE FOR NAMEPLATE

main61311-BZ420iB401201909-202207

L/HOLE FOR NAMEPLATE

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-BZ120iB401201606-201909

61411PANEL, ROCKER, OUTER RH

main61411-BZ250iB401201606-201906

W/HOLE FOR NAMEPLATE

main61411-BZ440iB401201906-201909

L/HOLE FOR NAMEPLATE

13 parts on this diagram · 5 diagrams in section
