MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-BZG50-C0iB401201909-202012

BLACK,TRIM4#,TYPE A

main58510-BZG51-C0iB401202012-202207

BLACK,TRIM4#,TYPE B

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-68046-B2iB401201606-201702

DK.GRAY,TRIM4#

main90044-68046-C2iB401..G;B401..5F..E202207

BLACK,TRIM4#

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iB401..G;B401..5F..E202207

58543ACARPET, STEP SIDE, RH

main58543-BZ030-C0iB401201909-202207

BLACK,TRIM4#

58570CCARPET ASSY, REAR FLOOR

main58570-BZ330-C1iB401201606-201702

BLACK,TRIM4#

main58570-BZ330-C2iB401..G;B401..5F..E202207

BLACK,TRIM4#

58678CPAD, REAR FLOOR SILENCER, NO.1 FRONT RH

main58065-BZ010iB401..G;B401..5F..E202207

58679BPAD, REAR FLOOR SILENCER, NO.1 FRONT LH

main58066-BZ010iB401201909-202207

58694BPLATE, MAT SET, UPPER

main58558-87502-B2×2iB401201606-201702

DK.GRAY,TRIM4#

main58558-87502-C0×2iB401201909-202207

BLACK,TRIM4#

58698CPLATE, MAT SET, LOWER

main58558-87209×2iB401201909-202207

9004A53002

main9004A-53002

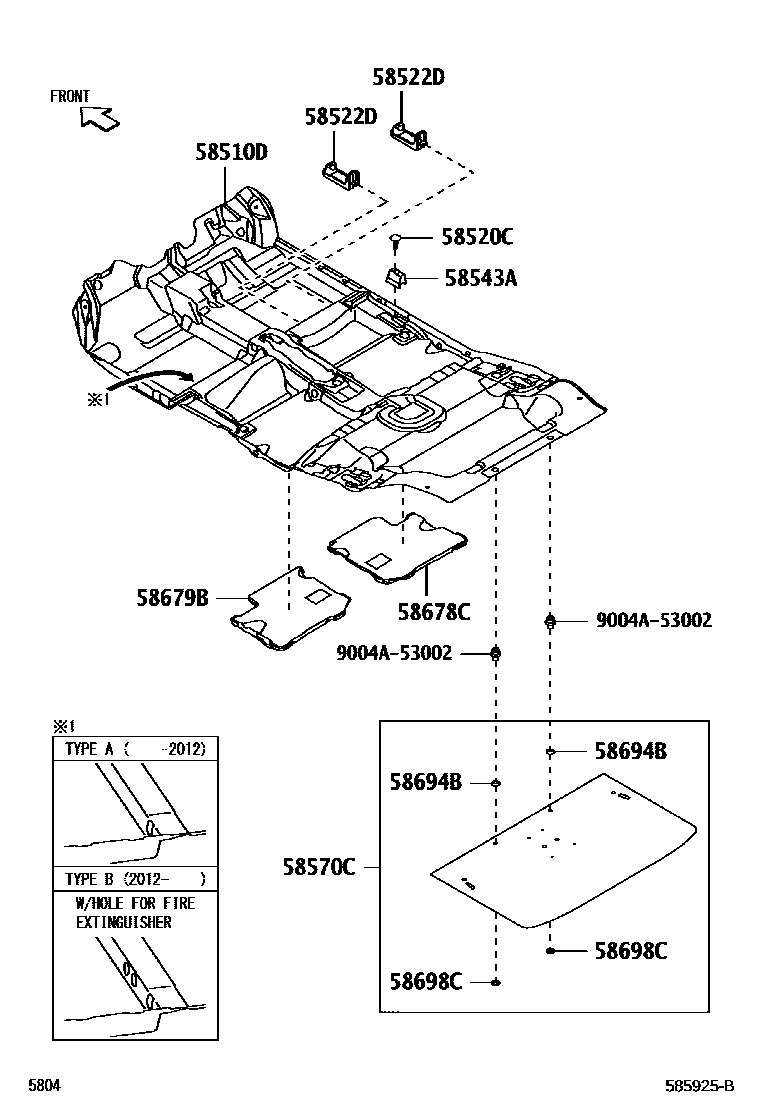

10 parts on this diagram · 1 diagram in section
