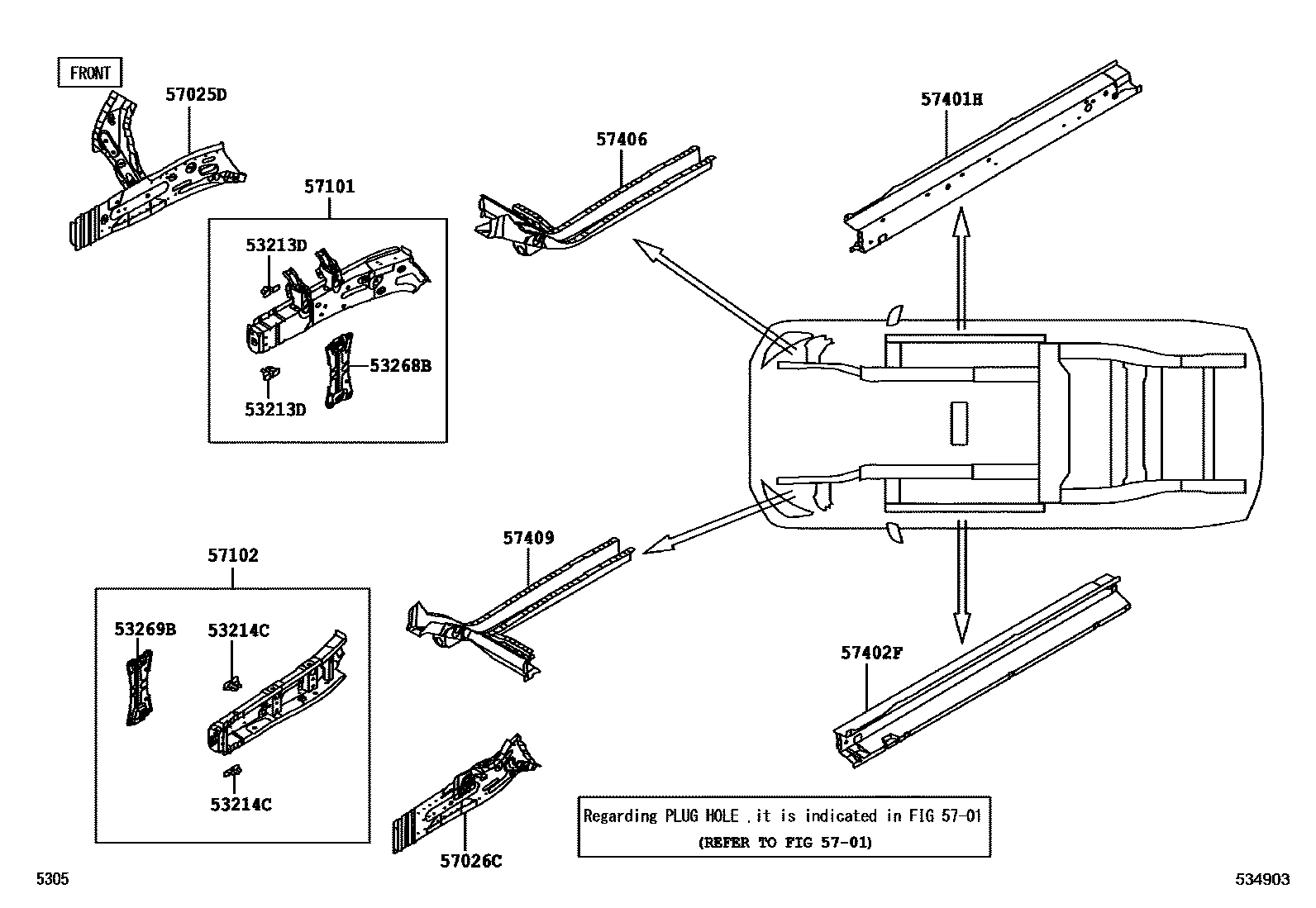

FLOOR SIDE MEMBER

0001 1FRONT 0004 1REAR

53213DSUPPORT, RADIATOR, UPPER RH

main53213-BZ060×2iB401..G;B401..5F..E202207

53214CSUPPORT, RADIATOR, UPPER LH

main53213-BZ060×2iB401201909-202207

53268BREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-BZ080iB401201606-201807

main53268-BZ110iB401201808-201909

53269BREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-BZ020iB401201606-201807

main53269-BZ060iB401201909-202207

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-BZ040iB401201909-202207

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-BZ070iB401..G;B401..5F..E202207

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-BZ570iB401201909-202207

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-BZ650iB401201909-202207

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-BZ300iB401201909-202207

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-BZ320iB401201909-202207

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-BZ190iB401201909-202207

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-BZ160iB401201909-202207

13 parts on this diagram · 2 diagrams in section
