HOOD & FRONT FENDER

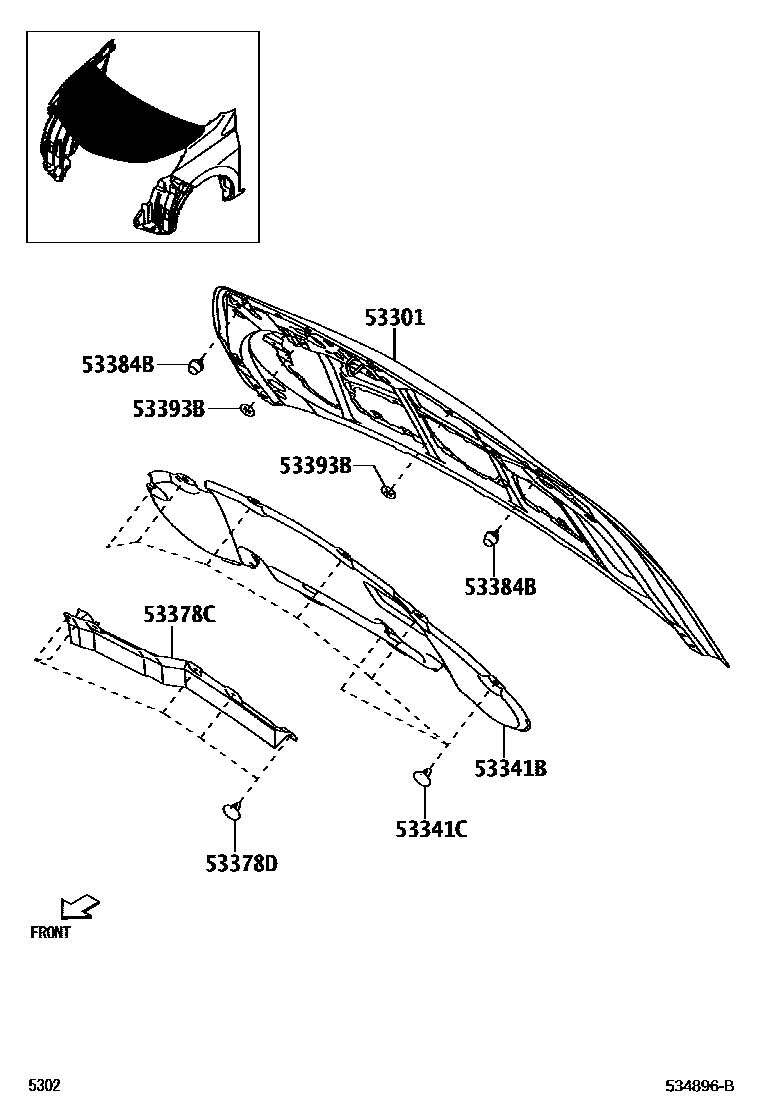

Parts diagram

53301HOOD SUB-ASSY

main53301-BZ320i201909-202207

53341BINSULATOR, HOOD

main53341-BZ110i201909-202207

53341CCLIP(FOR HOOD INSULATOR)

main9004A-46258×7i201909-202207

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-BZ010i201909-202207

53378DCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90044-67226×5i201909-202207

53384BCUSHION, HOOD, CENTER

main53384-BZ020×2i201909-202207

53393BPROTECTOR, HOOD, FRONT

main53393-BZ030×2i201909-202207

7 parts on this diagram · 3 diagrams in section
