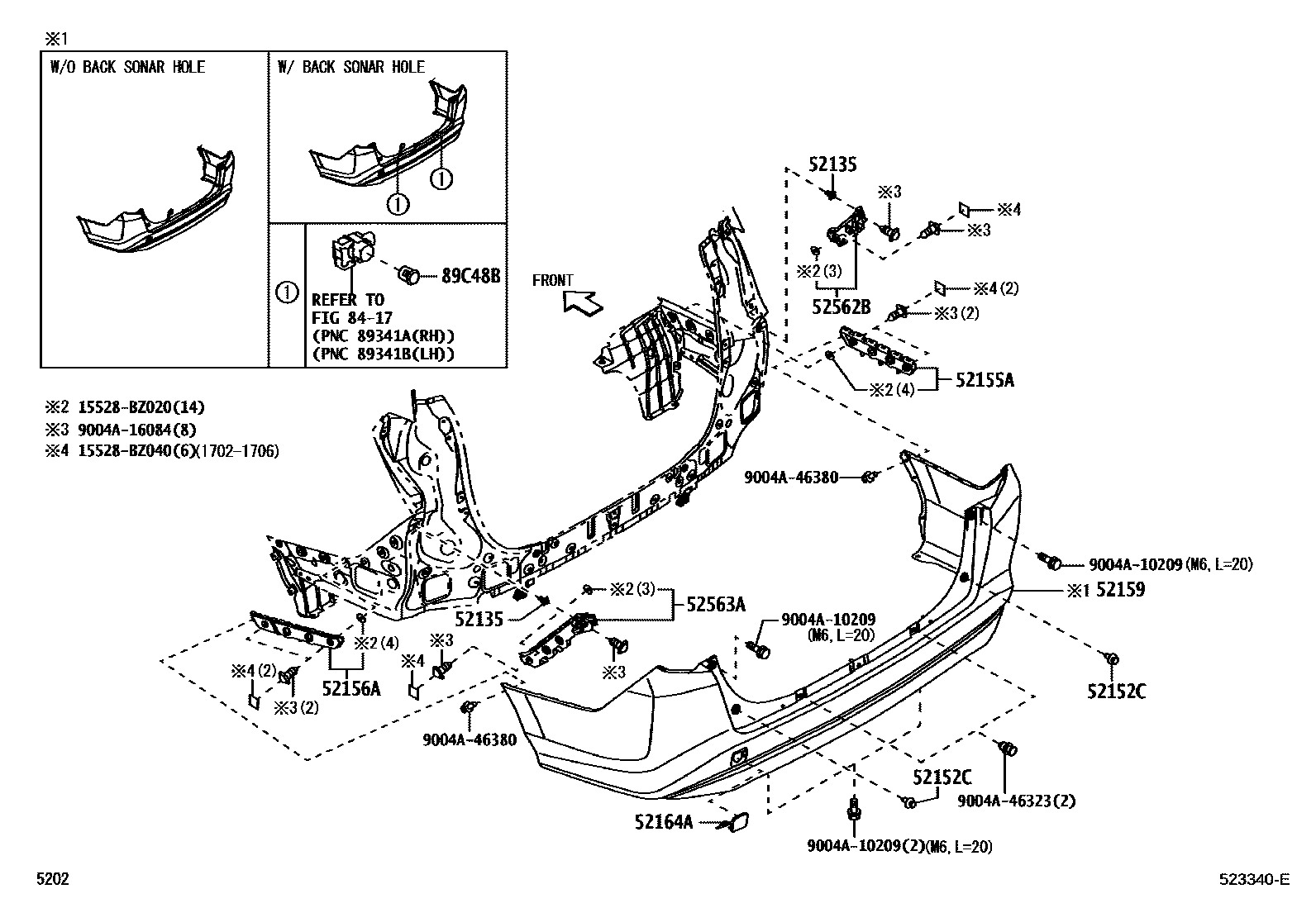

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52135GROMMET, REAR BUMPER STAY

main9004A-18034×2iB401..G;B401..5F..E202207

52152CCLIP, REAR BUMPER SIDE

main90044-67567×2iB401201606-201705

main9004A-46334×2iB401201909-202207

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-BZ180iB401201606-201706

main52155-BZ181iB401..G;B401..5F..E202207

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-BZ180iB401201606-201706

main52156-BZ181iB401..G;B401..5F..E202207

52159COVER, REAR BUMPER

main52159-BZF10iB401201909-202207

PAINT REQ.

52164APLATE, REAR BUMPER, LH

main52164-BZ180iB401201909-202207

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-BZ030iB401201606-201706

main52562-BZ031iB401201706-201909

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-BZ020iB401201606-201706

main52563-BZ021iB401..G;B401..5F..E202207

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-BZ040×2iB401201909-202207

15528BZ020GASKET, VALVE(FOR CENTRIFUGAL OIL FILTER)

main15528-BZ020

15528BZ040GASKET, VALVE(FOR CENTRIFUGAL OIL FILTER)

main15528-BZ040

9004A10209

main9004A-10209

9004A16084

main9004A-16084

9004A46323

main9004A-46323

9004A46380

main9004A-46380

16 parts on this diagram · 3 diagrams in section
