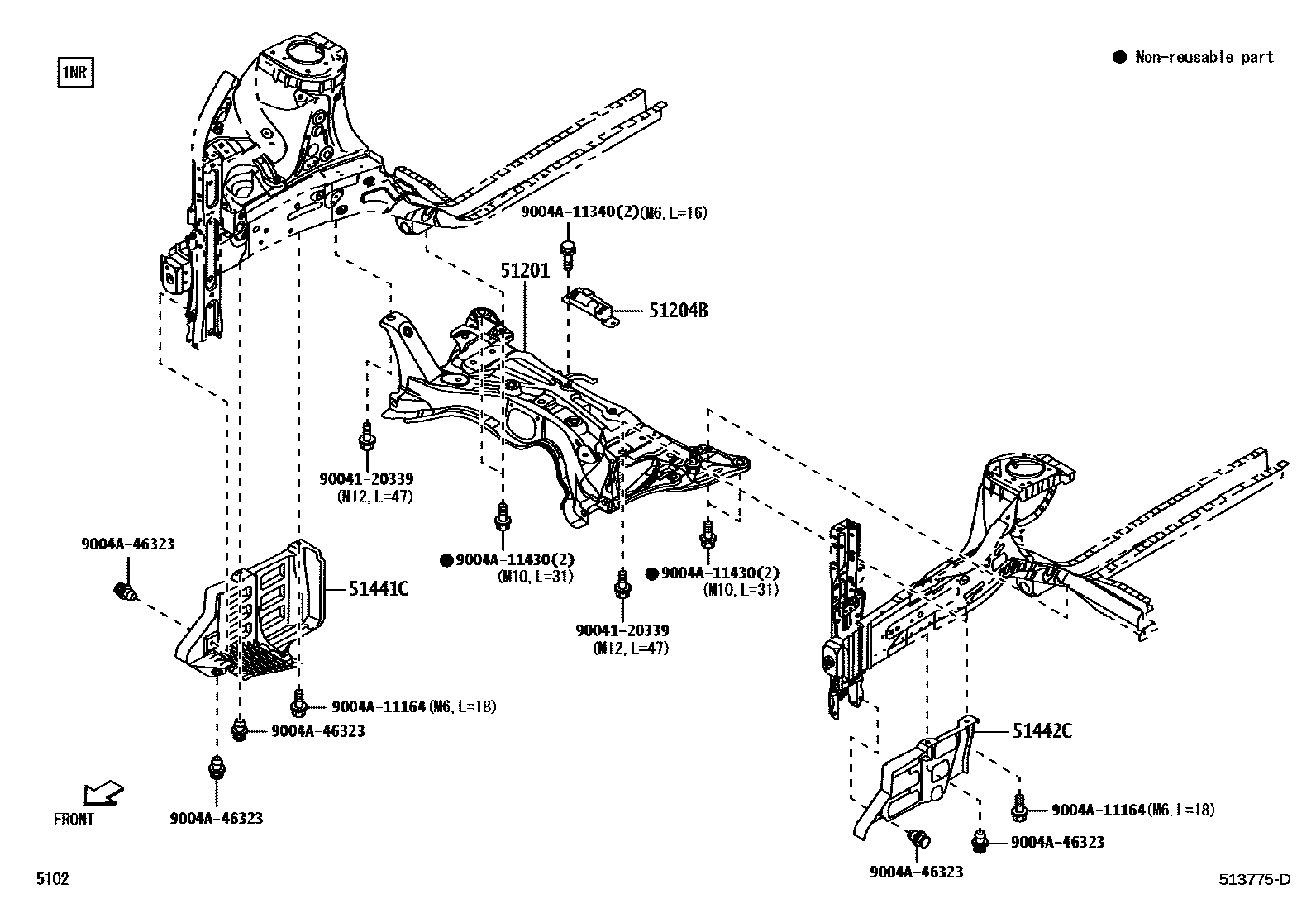

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-BZ110iB401202207-202209

main51201-BZ111iB401202210

51204BDAMPER SUB-ASSY, FRONT SUSPENSION MEMBER

main51204-BZ080iB401201606-201909

51441CCOVER, ENGINE UNDER, RH

main51441-BZ270iB401201909-202207

51442CCOVER, ENGINE UNDER, LH

main51442-BZ090iB401201909-202207

9004120339

main90041-20339

9004A11164

main9004A-11164

9004A11340

main9004A-11340

9004A11430

main9004A-11430

9004A46323

main9004A-46323

9 parts on this diagram · 1 diagram in section
