4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47150VALVE ASSY, PROPORTIONING

main47150-BZ060i201909-202207

47311TUBE, FRONT BRAKE, NO.1

main47311-BZ500supersedes 47311-BZ490i201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

47312TUBE, FRONT BRAKE, NO.2

main47312-BZ520supersedes 47312-BZ510i202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

47313TUBE, FRONT BRAKE, NO.3

main47313-BZ480supersedes 47313-BZ470i201606-201909

ABS (ANTI-LOCK BRK SYSTM)-ABS

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main9004A-94119i201909-202207

RH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2i201909-202207

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main9004A-94120i201909-202207

LH

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2i201909-202207

47314TUBE, FRONT BRAKE, NO.4

main47314-BZ540supersedes 47314-BZ380i202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

47318FHOSE, FLEXIBLE(FOR REAR RH)

main9004A-94121i202207

47319FHOSE, FLEXIBLE(FOR REAR LH)

main9004A-94121i201606-201909

47322TUBE, REAR BRAKE, NO.2

main47322-BZ330supersedes 47322-BZ320i201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

47324TUBE, REAR BRAKE, NO.4

main47324-BZ390supersedes 47324-BZ380i201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

47325TUBE, REAR BRAKE, NO.5

main47325-BZ260i201909-202207

47326TUBE, REAR BRAKE, NO.6

main47326-BZ260i202207

47371ACLAMP, BRAKE TUBE, NO.1

main90044-64485×2i201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

47371GCLAMP, BRAKE TUBE, NO.11

main90044-65441×4i201909-202207

47372CLAMP, BRAKE TUBE, NO.2

main9004A-46299i201909-202207

47373BCLAMP, BRAKE TUBE, NO.3

main90044-64659×2i201909-202207

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9004A10150

main9004A-10150

9004A10217

main9004A-10217

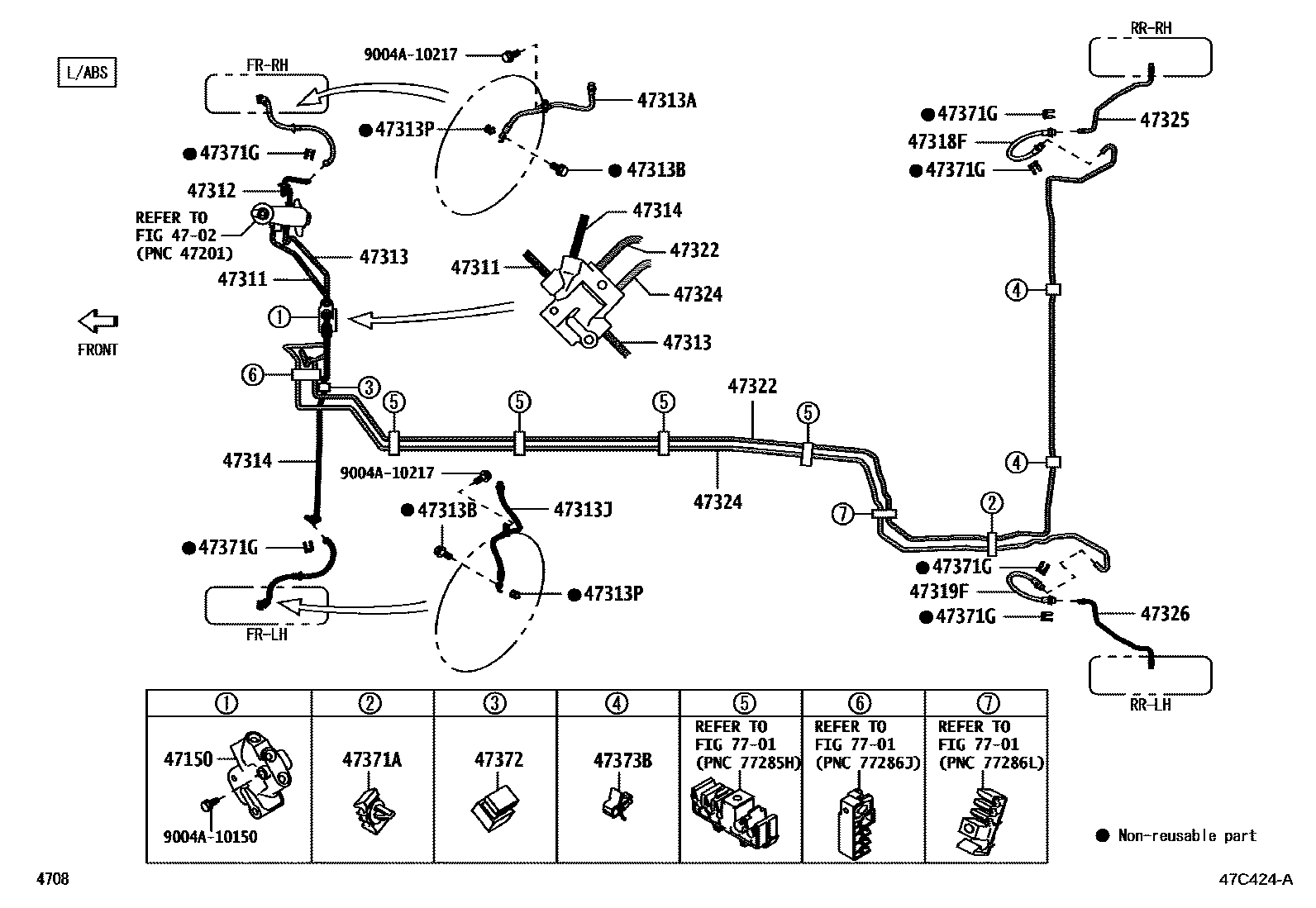

BRAKE TUBE & CLAMP
