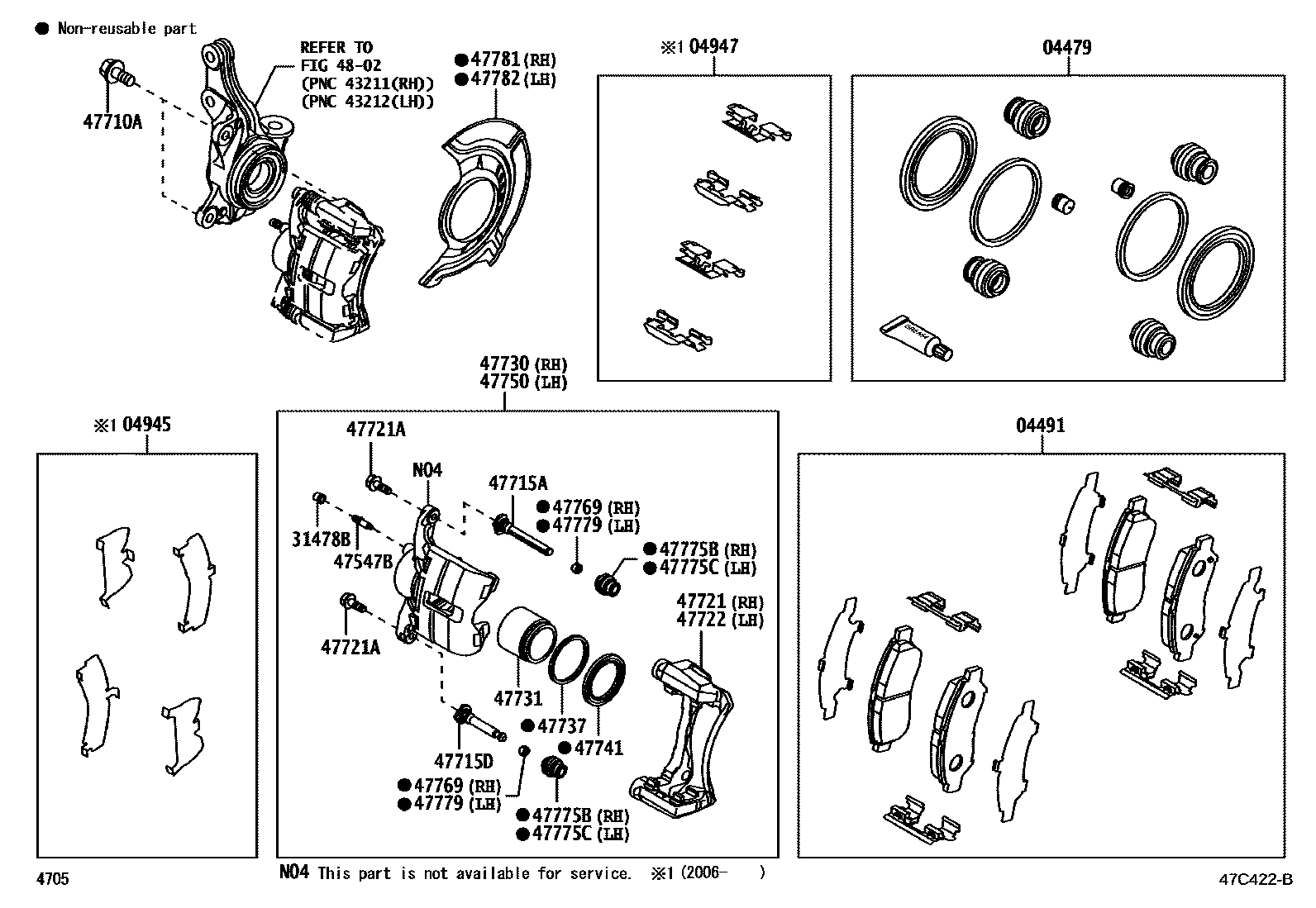

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-BZ170iB401201909-202207

04491PAD KIT, DISC BRAKE, FRONT

main04465-BZ290iB401..G;B401..5F..E202207

main04491-BZ030iB401201909-202006

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-BZ080iB401202006-202207

04947FITTING KIT, DISC BRAKE, FRONT

main04947-BZ080iB401202006-202207

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-BZ010×2iB401201909-202207

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-BZ050×2iB401201606-201909

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05242×4iB401201909-202207

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-BZ160×2iB401201909-202207

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-BZ170×2iB401201909-202207

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-BZ090iB401201909-202207

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main9004A-10110×4iB401201909-202207

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-BZ090iB401201606-201909

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-BZ080iB401201909-202207

47731PISTON, FRONT DISC BRAKE

main47731-BZ010×2iB401201909-202207

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-BZ010×2iB401201909-202207

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-BZ030×2iB401201909-202207

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-BZ100iB401201909-202207

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-BZ030iB401201909-202207

47775BBOOT, BUSH DUST, NO.1

main47775-BZ010×2iB401201909-202207

47775CBOOT, BUSH DUST, NO.2

main47775-BZ010×2iB401201909-202207

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-BZ030iB401201909-202207

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-BZ150iB401201909-202207

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-BZ150iB401201909-202207

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

24 parts on this diagram · 1 diagram in section
