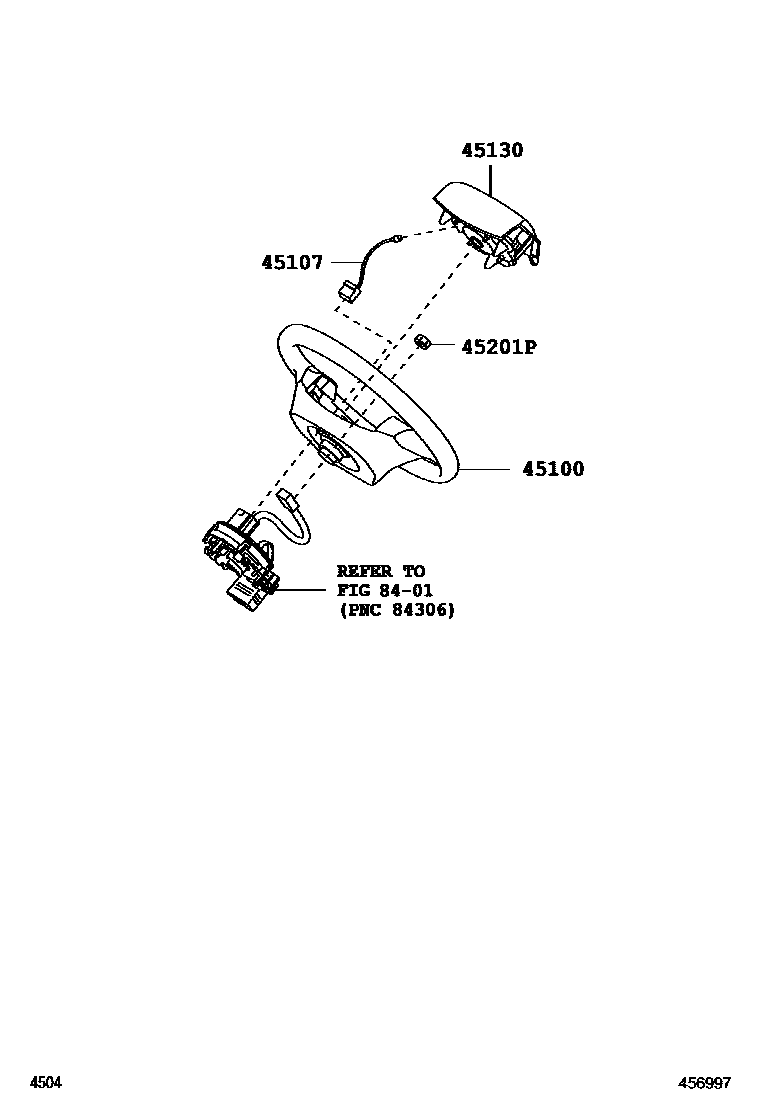

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45102-BZ500-C2iB401..E201909-202207

3-SPOKE,URETHANE,BLACK,TRIM4#

main45102-BZ510-C1iB401..G201606-201909

3-SPOKE,URETHANE,SILVER,TRIM4#

main45102-BZ520-C1iB401..G202207

3-SPOKE,URETHANE,SILVER,TRIM4#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-B2050iB401201606-201909

45130BUTTON ASSY, HORN

main45130-BZ640-C0iB401..4FC201909-202207

BLACK,TRIM4#

main45130-BZ710-C0iB401..5F202207

BLACK,TRIM4#

45201PNUT, STEERING WHEEL SET

main9004A-17176iB401201606-201909

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5 parts on this diagram · 2 diagrams in section
