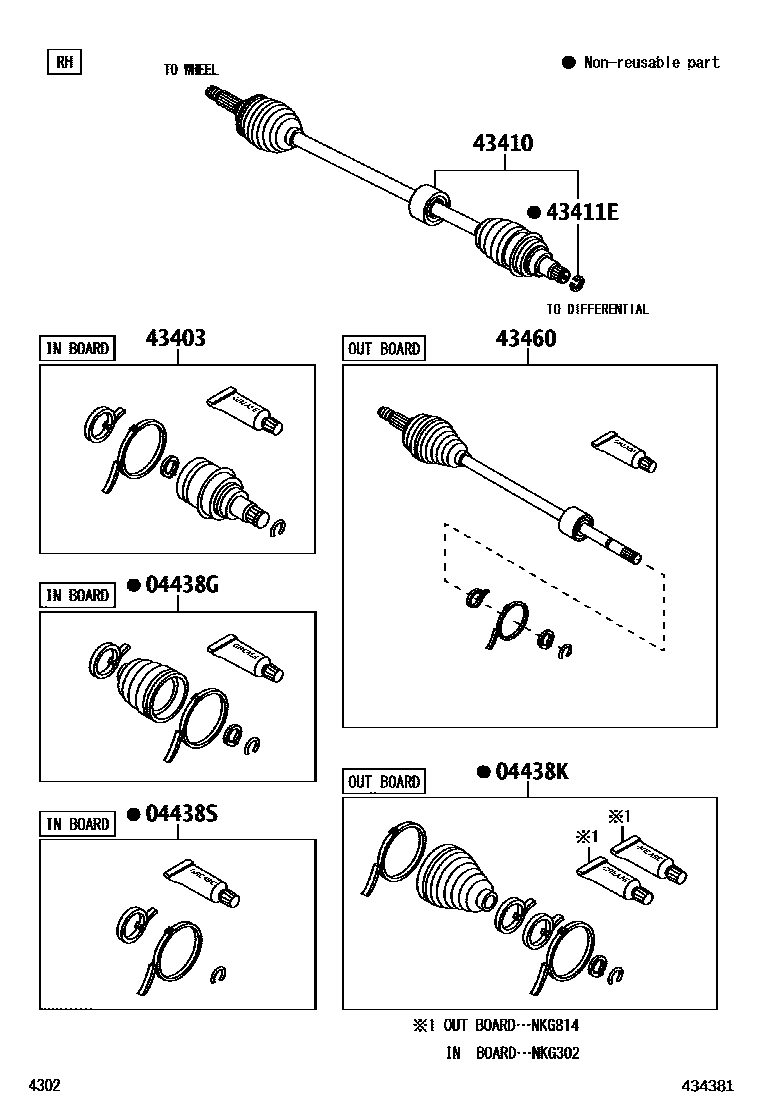

FRONT DRIVE SHAFT

0001 1RH SIDE 0004 1LH SIDE 0005 1LH SIDE

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-BZ050iB401..G;B401..5F..E202207

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-BZ050iB401201909-202110

main04425-BZ051iB401..G;B401..5F..E202207

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-BZ060iB401201909-202207

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9510iB401201909-202207

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-BZ140iB401..G;B401..5F..E202207

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90045-20298iB401201909-202207

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43411-B9520iB401201606-201909

main43411-B9521iB401..G;B401..5F..E202207

7 parts on this diagram · 3 diagrams in section
