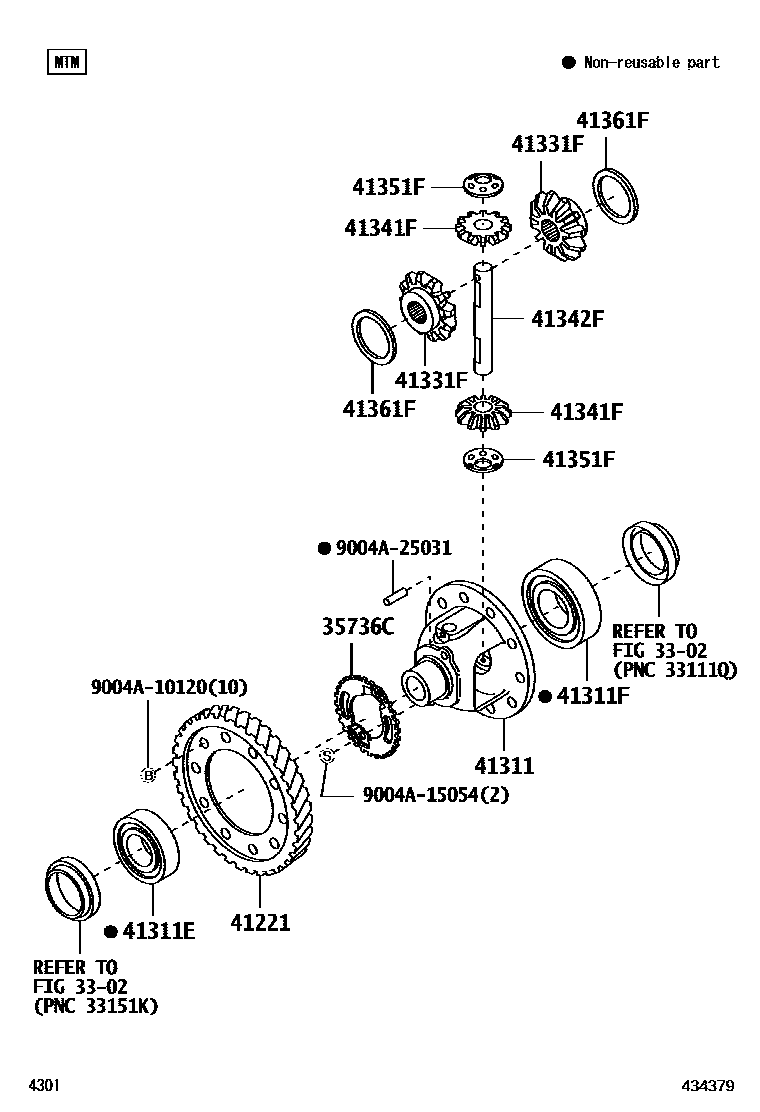

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0004 1

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

35736CROTOR, SPEED SENSOR

main35736-BZ040iB401..5F201909-202207

41221GEAR, FRONT DIFFERENTIAL RING

main41221-BZ280iB401..5F201606-201812

main41221-BZ310iB401..5F202207

41311CASE, FRONT DIFFERENTIAL

main41311-BZ070iB401..5F202207

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90043-63276iB401..4FC201909-202207

main9004A-36101iB401..5F202207

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90043-63378iB401..4FC..G202207

main9004A-36115iB401..5F201909-202207

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-97202×2iB401..5F201909-202207

41341FPINION, FRONT DIFFERENTIAL

main41341-97401×2iB401..5F201909-202207

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-97401iB401..5F201909-202207

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-97201×2iB401..5F201909-202207

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-BZ130×2iB401..5F201909-202207

T=0.8

9004A10120

main9004A-10120

9004A15054

main9004A-15054

9004A25031

main9004A-25031

14 parts on this diagram · 2 diagrams in section
