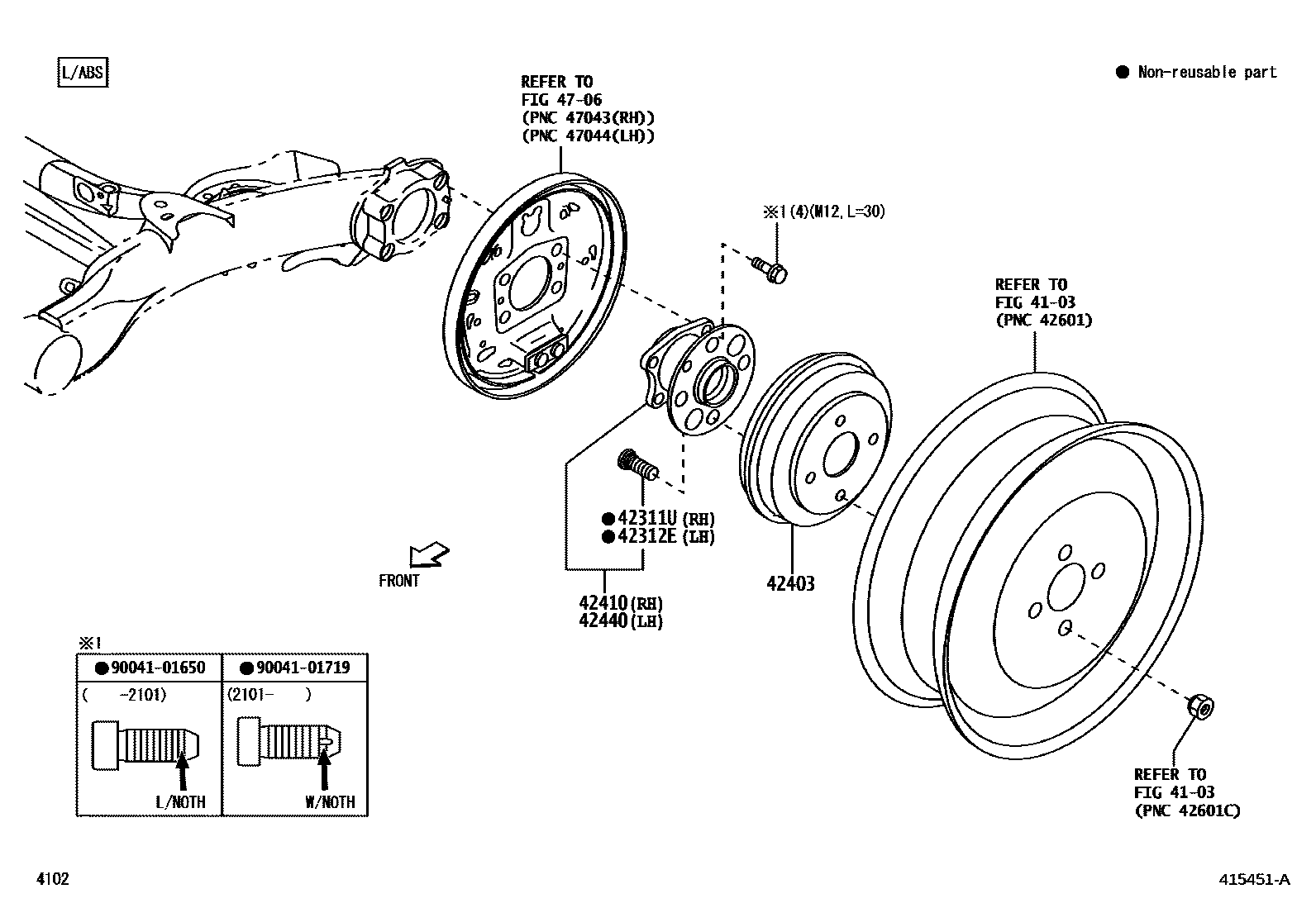

REAR AXLE SHAFT & HUB

0001 1L/ABS 0004 1W/ABS

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311UBOLT, HUB(FOR REAR AXLE RH)

main90049-12056×4iB401..G;B401..5F..E202207

42312EBOLT, HUB(FOR REAR AXLE LH)

main90049-12056×4iB401201909-202207

42403DRUM SUB-ASSY, REAR BRAKE

main42431-BZ160×2iB401201909-202207

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-BZ130supersedes 42410-BZ040iB401..5F..E; B401..G202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-BZ130supersedes 42410-BZ040iB401..5F..E; B401..G202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

9004101650

main90041-01650

9004101719

main90041-01719

9 parts on this diagram · 2 diagrams in section
