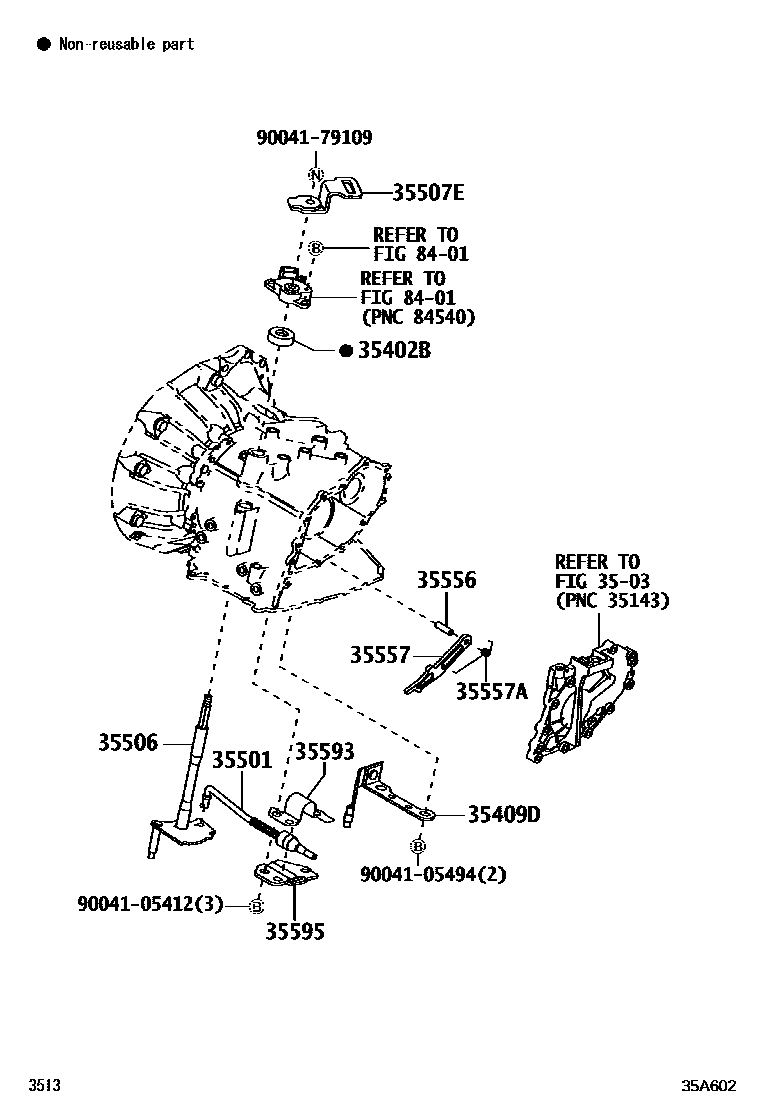

THROTTLE LINK & VALVE LEVER (ATM)
3503TRANSMISSION CASE & OIL PAN (ATM)
35402BSEAL,OIL(FOR MANUAL VALVE)
35409DSPRING SUB-ASSY, MANUAL DETENT
35501ROD SUB-ASSY, PARKING LOCK
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35507ELEVER,TRANSMISSION CONTROL SHAFT
35556SHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35593SLEEVE, CAM GUIDE
35595BRACKET, PARKING LOCK PAWL
8401SWITCH & RELAY & COMPUTER
9004105412
main90041-05412
9004105494
main90041-05494
9004179109
main90041-79109
15 parts on this diagram · 1 diagram in section
