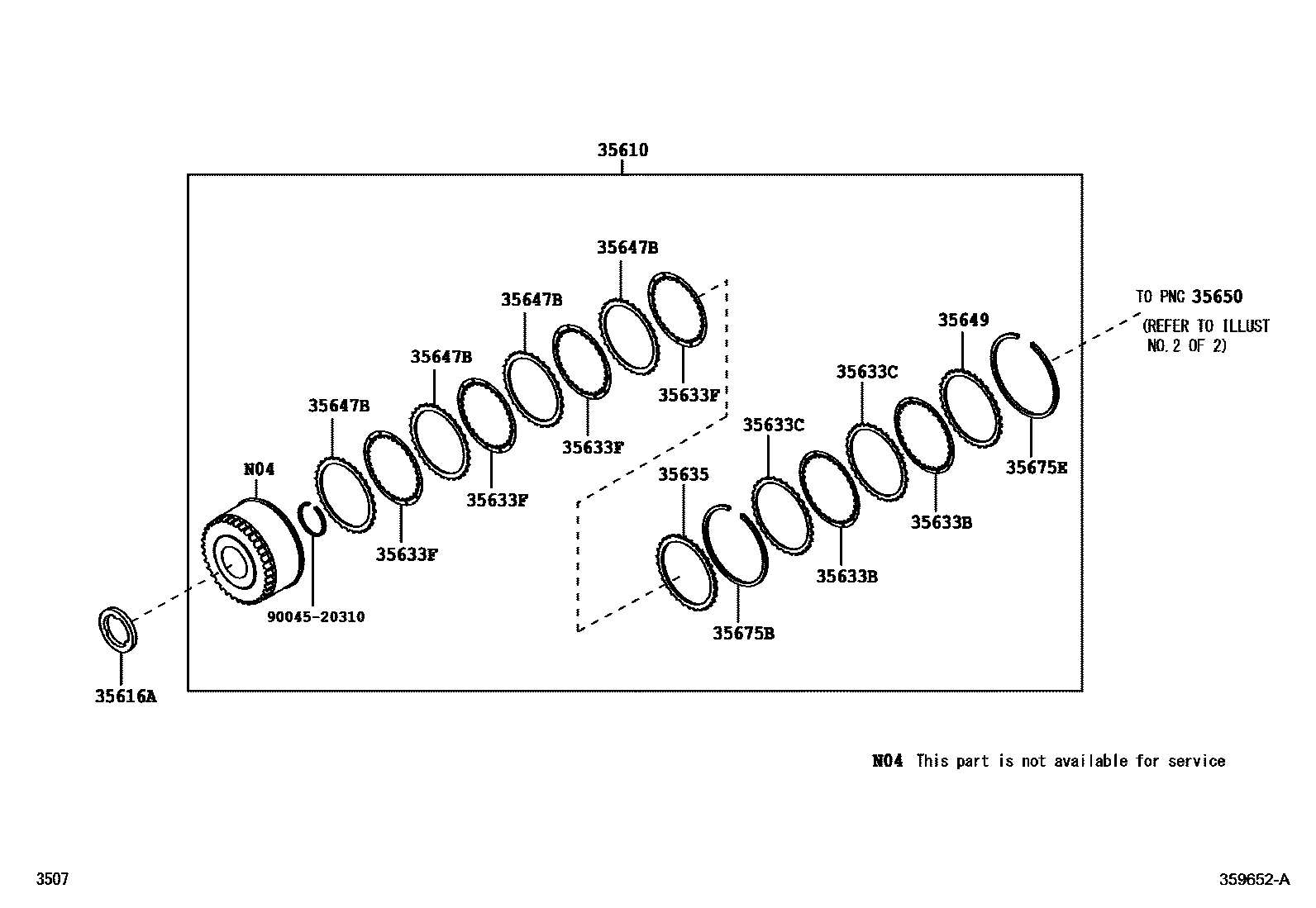

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35610CLUTCH ASSY, FRONT MULTIPLE DISC
35616ABEARING, FRONT CLUTCH THRUST
T=3.41
T=4.21
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35633FDISC, CLUTCH (FOR FRONT CLUTCH)
35635FLANGE, FORWARD CLUTCH
T=3.0
35647BPLATE, CLUTCH, NO.2
35649FLANGE, REVERSE CLUTCH
T=3.0
35650CLUTCH ASSY, REAR MULTIPLE DISC
35675FLANGE, REAR CLUTCH
T=3.0
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
T=1.5
T=1.75
T=2.0
T=2.25
T=2.50
35675ERING, HOLE SNAP (FOR REAR CLUTCH FLANGE)
9004520310
main90045-20310
13 parts on this diagram · 2 diagrams in section
