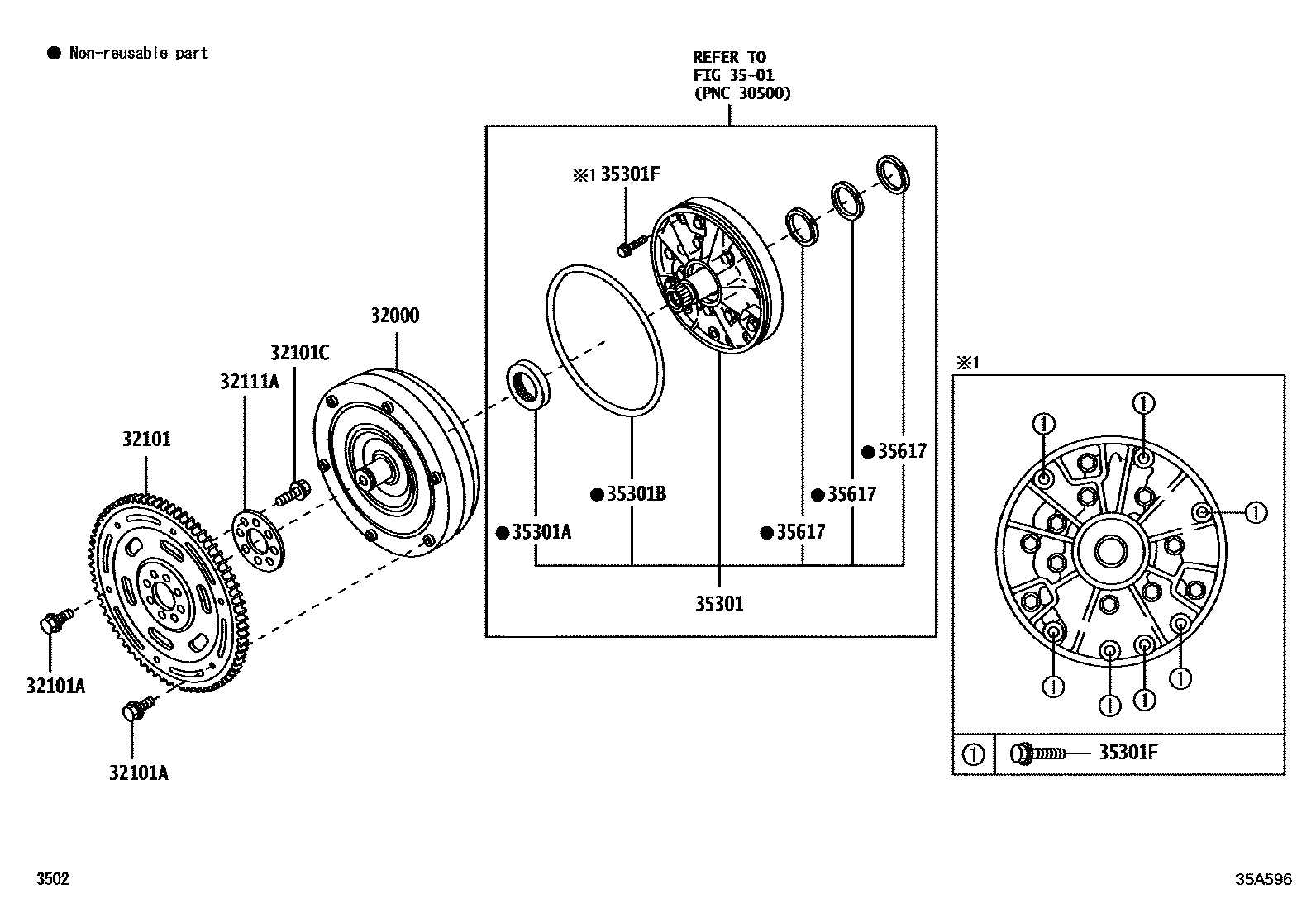

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-B1140iB401..4FC201606-201611

main32000-B1141iB401..4FC201909-202207

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-BZ050iB401..4FC..G202207

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05273iB401..4FC201909-202012

M8,L=9.5,SILVER

main90041-05281×5iB401..4FC201909-202012

M8,L=9.5,BLACK

main90041-05595iB401..4FC202101-202207

M8,L=9,SILVER

main90041-05596×5iB401..4FC..G202207

M8,L=9,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main9004A-10200×8iB401..4FC201909-202207

32111APLATE(FOR PUMP IMPELLER DRIVE PLATE)

main32113-BZ030iB401..4FC201909-202207

3501TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

→ Go to FIG 35-01

35301BODY SUB-ASSY, FRONT OIL PUMP

main35310-B1050iB401..4FC201909-202207

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90043-11336iB401..4FC201909-202207

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90043-01161iB401..4FC201909-202207

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90041-05122×7iB401..4FC201909-202207

35617RING, CLUTCH DRUM OIL SEAL

main35653-B1010×3iB401..4FC201909-202207

11 parts on this diagram · 1 diagram in section
