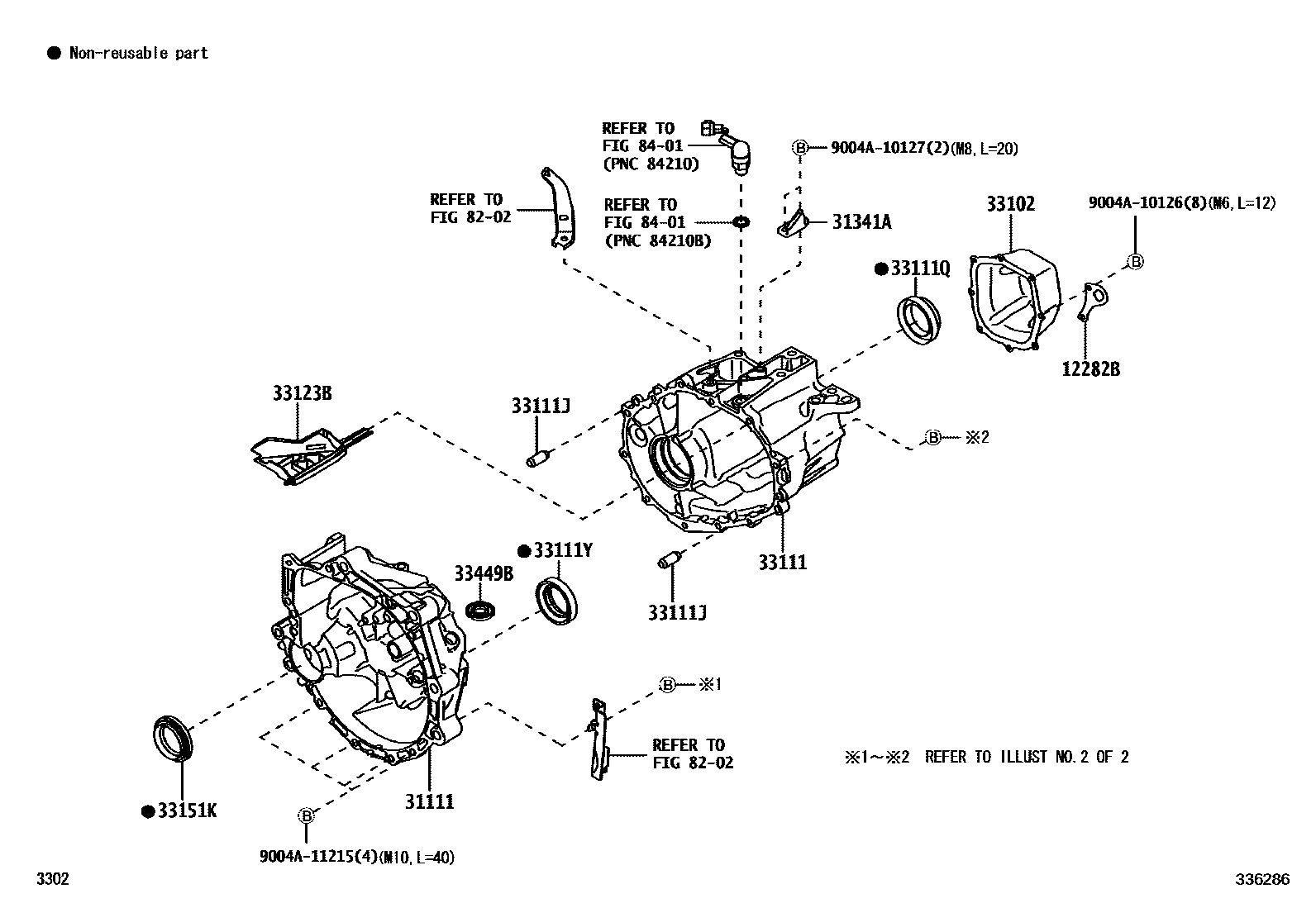

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1ILLUST NO.1 OF 2 0004 1ILLUST NO.2 OF 2

12282BHANGER, TRANSAXLE

main12282-BZ040i3NRVE..B401..5F201909-202207

31111HOUSING, CLUTCH

main31115-BZ040iB401..5F201909-202207

31341ABRACKET, CLUTCH CABLE

main31341-BZ050iB401..5F201909-202207

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-BZ010iB401..5F201909-202207

33111CASE, MANUAL TRANSMISSION

main33111-BZ060iB401..5F201909-202207

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main9004A-25032×2iB401..5F201909-202207

L=25,OD=10

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main9004A-31050iB401..5F201909-202207

33111YSEAL, OIL(FOR TRANSMISSION CASE)

main9004A-31013iB401..5F201909-202207

33123BRECEIVER, CASE COVER OIL, NO.1(MTM)

main33123-BZ010iB401..5F201909-202207

33151KSEAL, TYPE T OIL

main9004A-31051iB401..5F201909-202207

33449BMAGNET, TRANSMISSION

main33449-BZ030iB401..5F201909-202207

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004A10126

main9004A-10126

9004A10127

main9004A-10127

9004A11215

main9004A-11215

16 parts on this diagram · 2 diagrams in section
