HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ110iB100..HI,MID; B100..LO201212-201704

AIR CONDITIONER-MANUAL

88302BSTATOR, MAGNET CLUTCH

main88411-BZ110iB100..HI,MID; B100..LO201212-201704

AIR CONDITIONER-MANUAL

main88411-BZ210iB101202003

88320COMPRESSOR ASSY, COOLER

main88320-BZ170iB100201704-202003

main88320-BZ330iB101201704-202003

88329EBOLT, COMPRESSOR, NO.1

main9004A-10144×2iB100; B101201704-202003

main91551-80850×2iB100..HI,MID; B100..LO201212-201510

AIR CONDITIONER-MANUAL

88329FBOLT, COMPRESSOR, NO.2

main88329-BZ030×2iB100..HI,MID; B100..LO201511-201704

AIR CONDITIONER-MANUAL

main91551-80880×2iB100202201

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704iB100201704-202003

T=0.1

main88318-87705iB100..HI,MID; B100..LO201212-201704

AIR CONDITIONER-MANUAL,T=0.3; T=0.3

main88318-87706iB100201704-202003

T=0.5

88365RING, SNAP

main90099-07125iB10#201704-202003

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iB10#201704-202003

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-BZ080iB10#201704-202003

88410CLUTCH ASSY, MAGNET

main88410-BZ250iB100201704-202003

main88410-BZ320iB101201704-202003

88433ASTAY, COMPRESSOR

main88433-B1020iB100201704-202003

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iB10#201704-202003

88688NBRACKET, COOLER

main88688-BZ140iB100..HI,MID; B100..LO201212-201704

AIR CONDITIONER-MANUAL

main88688-BZ220iB101201704-202003

8846687701

main88466-87701

8856987107CLAMP (FOR COOLER RELAY)

main88569-87107

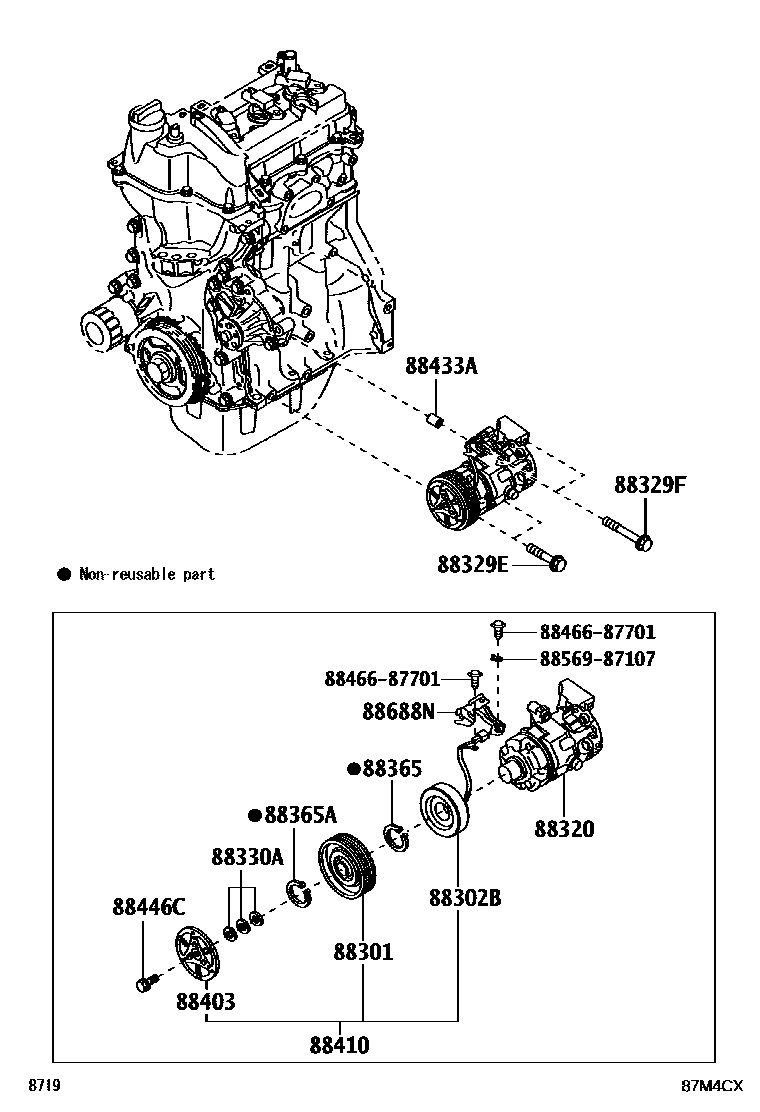

15 parts on this diagram · 2 diagrams in section
