HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

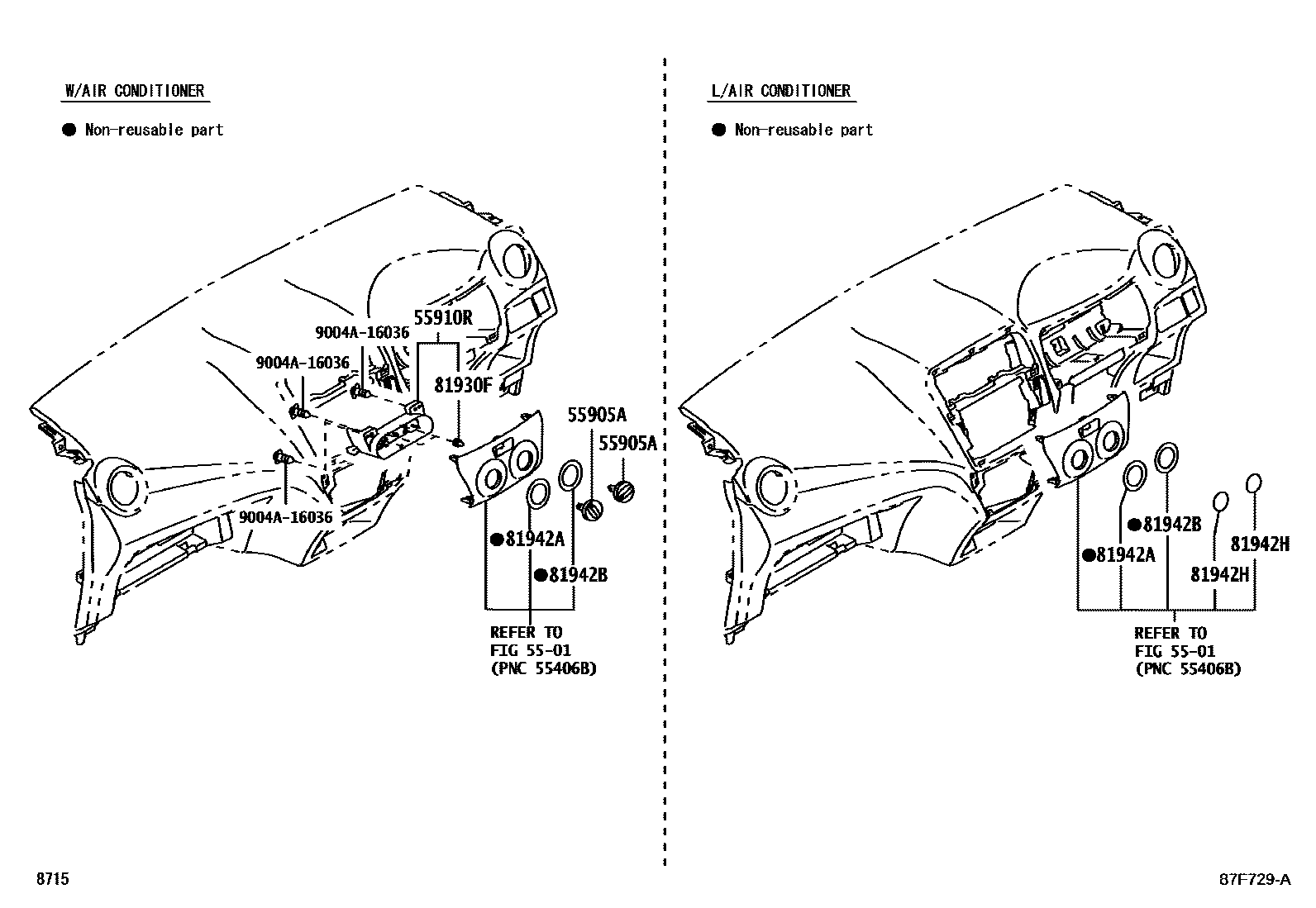

Parts diagram

5501

55905AKNOB, HEATER CONTROL

main55905-BZ220-B0i201212-201704

SILVER,TRIM1#

main55905-BZ220-B2i201704-202003

SILVER,TRIM1#

main55905-BZ400-B0i202003

LEBANON,SILVER,TRIM2#

main55905-BZ400-B0i202003

SILVER,TRIM2#

main55905-BZ400-B0i202003

GENERAL EXP(W/HEATER),SILVER,TRIM2#

main55905-BZ400-B0i202003

TUNISIA,SILVER,TRIM2#

55910RCONTROL ASSY, HEATER

main55910-BZ390i201212-201504

HEATER CONT. PANEL-2 DIAL&AIR CONDITIONER-MANUAL

main55910-BZ410i201401-201704

main55910-BZ500i201704-202003

main55910-BZ500i201504-201704

AIR CONDITIONER-MANUAL

main55910-BZ540i201704-202003

main55910-BZ630i202003

GENERAL EXP(W/O HEATER)

main55910-BZ650i202003

SRI LANKA

main55910-BZ650i202003

BRUNEI

81930FBULB, HEATER CONTROL INDICATOR LAMP

main81936-BZ090i201212-201504

14V 1.4W

main81936-BZ090i201212-201504

14V 1.4W,HEATER CONT. PANEL-2 DIAL&AIR CONDITIONER-MANUAL

main9004B-81026i201401-201704

14V 2.996W

main9004B-81027i201504-202003

14V 3.0W

main9004B-81027i202003

14V 3.0W,LEBANON

main9004B-81027i201504-201704

14V 3.0W,AIR CONDITIONER-MANUAL

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-BZ510i201212-201504

HEATER CONT. PANEL-2 DIAL&AIR CONDITIONER-MANUAL

main81942-BZ511i201504-201704

AIR CONDITIONER-MANUAL

main81942-BZ511i201704-202003

main81942-BZ530i201212-201704

main81942-BZ550i201401-201704

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-BZ520i201212-201504

HEATER CONT. PANEL-2 DIAL&AIR CONDITIONER-MANUAL

main81942-BZ521i201504-201704

AIR CONDITIONER-MANUAL

main81942-BZ521i201704-202003

main81942-BZ530i201212-201704

main81942-BZ560i201401-201704

81942HSHEET, HEATER CONTROL NAME, NO.3

main81942-BZ540i201212-201704

main81942-BZ570i201401-201704

9004A16036

main9004A-16036

8 parts on this diagram · 8 diagrams in section
